Structural · S-VAH8P

Typical Weld Access Hole

Materials

Connections

About this detail

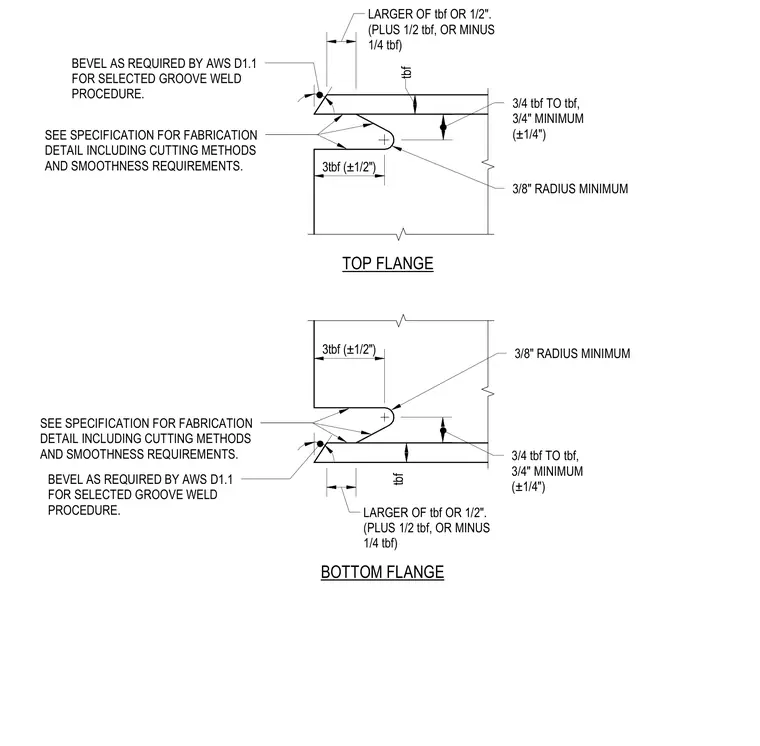

The cutout features a minimum three-eighths inch radius at the base of the web, with bevels prepared in accordance with AWS D1.1 for the selected groove weld procedure. Horizontal and vertical dimensions are indexed proportionally to the flange thickness, designated as tbf, including depth, length, and setback tolerances. Specifications govern additional fabrication requirements such as cutting methods and surface smoothness.
