Concrete Wall Corner and Intersection Reinforcing Details

Materials

Elements

About this detail

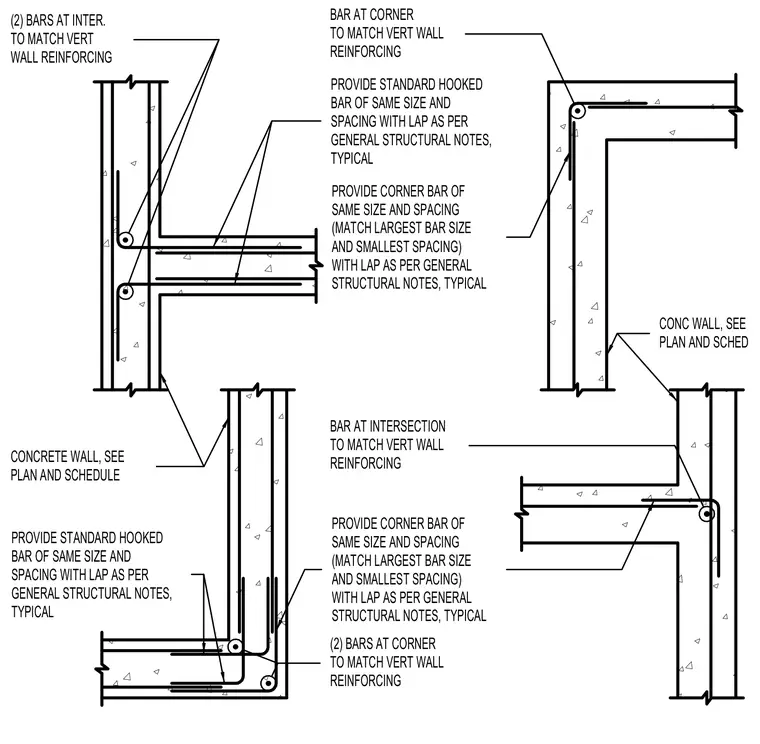

Reinforced concrete wall corners and intersections are detailed with vertical reinforcing bars matching the wall schedule, joined by standard hooked bars and corner bars sized to match the largest bar size and smallest spacing per general structural notes. Two bars are placed at corners and intersections to match vertical wall reinforcing, complete with required lap lengths.
