Structural · S-VA289

Typical Elevator Pit Divider Beam Details

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Floors / Slabs Decks Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

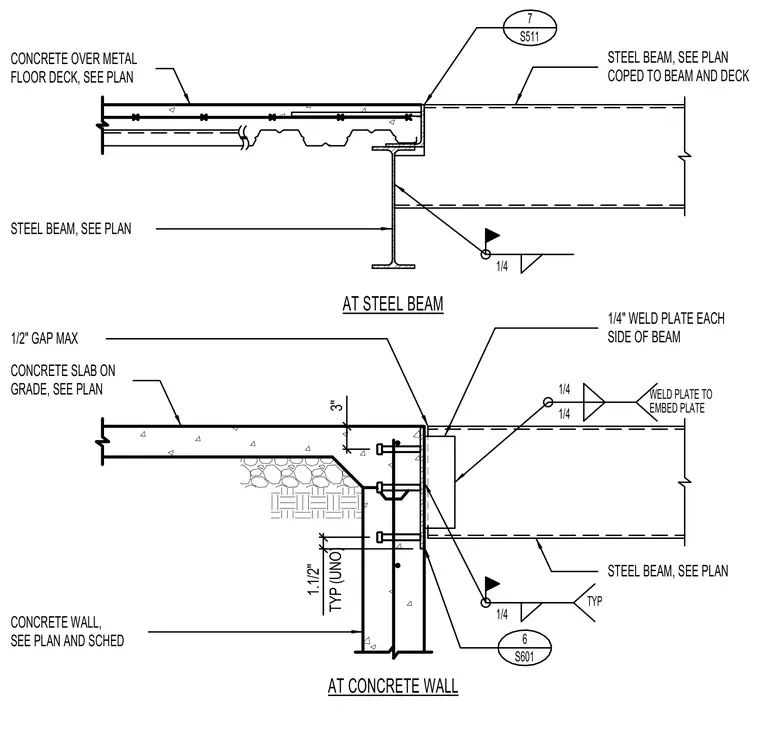

These details show structural steel divider beams framing into a concrete elevator pit wall and supporting metal floor deck assemblies. The connection at the concrete wall incorporates a weld plate anchored to the wall with embed plates, welded on each side of the beam with quarter-inch fillet welds. A maximum half-inch gap is specified between the beam and wall, with a concrete slab on grade bearing adjacent to the connection. The steel beam-to-beam detail shows the supported steel beam coped to match the supporting beam and metal floor deck, secured with quarter-inch welds.
