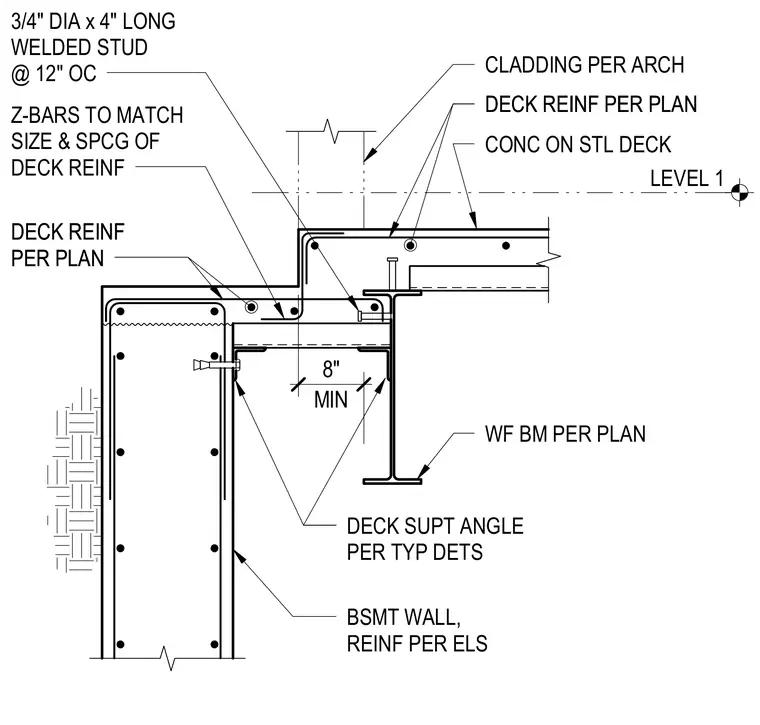

Concrete on steel deck bears on a deck support angle attached to a reinforced concrete basement wall and a wide-flange beam. The assembly incorporates three-quarter-inch diameter by four-inch long welded studs spaced at twelve inches on center along the beam top flange. Deck reinforcement per plan is matched with Z-bars sized and spaced identically to the deck reinforcement. A minimum eight-inch bearing clearance is provided at the support angle. Cladding is detailed per architectural drawings above the Level 1 line.
DECK REINF PER PLAN Z-BARS TO MATCH SIZE & SPCG OF DECK REINF CLADDING PER ARCH CONC ON STL DECK DECK REINF PER PLAN DECK REINF PER PLAN DECK REINF PER PLAN LEVEL 1 3/4" DIA x 4" LONG WELDED STUD @ 12" OC WF BM PER PLAN DECK SUPT ANGLE PER TYP DETS BSMT WALL, REINF PER ELS MIN 8"
