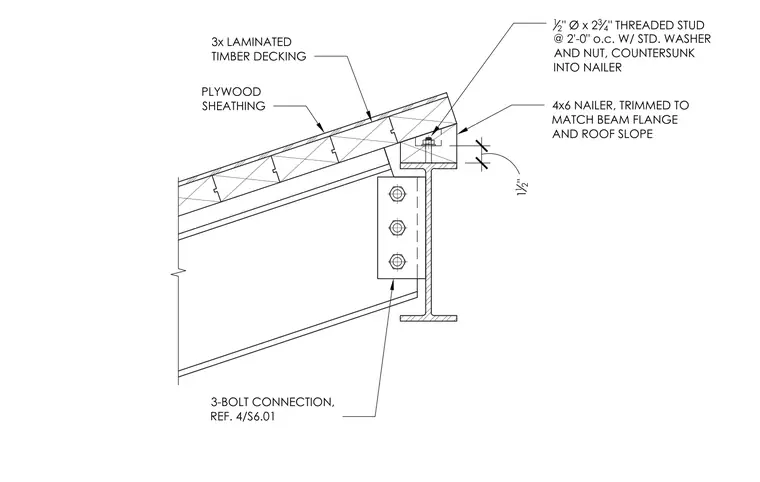

A 4x6 nailer is trimmed to match the steel beam flange and roof slope, anchored by one-half-inch diameter by two-and-three-quarter-inch threaded studs with standard washers and nuts spaced at two feet on center and countersunk into the nailer. Three-by laminated timber decking and one-and-one-half-inch plywood sheathing bear over the sloped framing. A structural steel beam supports the assembly via a three-bolt connection referenced on sheet S6.01.
12 " Ø x 2 3 4 " THREADED STUD @ 2'-0" o.c. W/ STD. WASHER AND NUT, COUNTERSUNK INTO NAILER 3-BOLT CONNECTION, REF. 4/S6.01 3x LAMINATED TIMBER DECKING 4x6 NAILER, TRIMMED TO MATCH BEAM FLANGE AND ROOF SLOPE 1 12 " PLYWOOD SHEATHING
