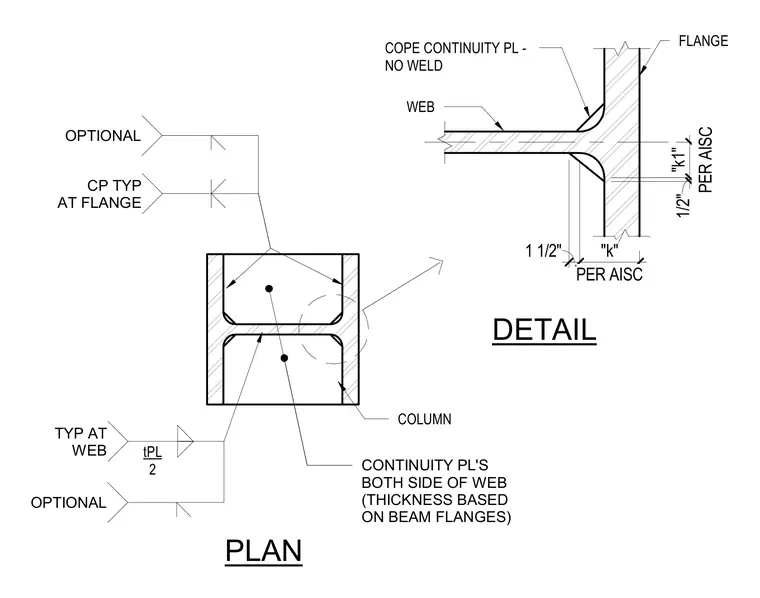

Continuity plates are placed on both sides of the steel column web and sized based on the thickness of the connecting beam flanges. The detail incorporates a cope at the continuity plate leaving a one-half-inch clearance per AISC k-distance requirements. Optional welds are indicated at the web and flange connections.
DETAIL PLAN COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 1/2" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB tPL 2 OPTIONAL CP TYP AT FLANGE
