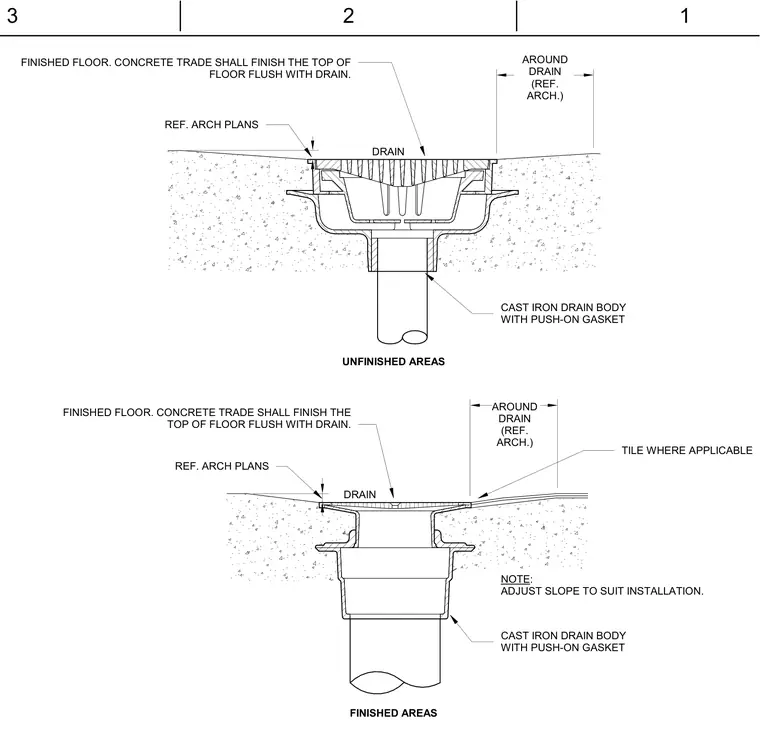

A cast iron drain body with a push-on gasket is set within a concrete floor slab for both finished and unfinished areas. The concrete trade finishes the top of the floor flush with the drain, adjusting slopes to suit installation according to architectural plans and tile requirements where applicable.
NOTE: ADJUST SLOPE TO SUIT INSTALLATION. FINISHED FLOOR. CONCRETE TRADE SHALL FINISH THE TOP OF FLOOR FLUSH WITH DRAIN. DRAIN TILE WHERE APPLICABLE CAST IRON DRAIN BODY WITH PUSH-ON GASKET AROUND DRAIN (REF. ARCH.) DRAIN CAST IRON DRAIN BODY WITH PUSH-ON GASKET FINISHED FLOOR. CONCRETE TRADE SHALL FINISH THE TOP OF FLOOR FLUSH WITH DRAIN. FINISHED AREAS UNFINISHED AREAS REF. ARCH PLANS AROUND DRAIN (REF. ARCH.) REF. ARCH PLANS 3 2 1
