A structural detail utilizes a WT 7x15x8 structural tee supported by half-inch and three-quarter-inch steel plates. The assembly incorporates four number six reinforcing bars measuring four feet long designated as angle D, alongside low hydrogen welding with five-sixteenth-inch fillet welds. Additional plate components measuring half-inch by six inches by zero feet seven and a half inches and three-quarter-inch by two inches by zero feet six inches tie the connection together. Three-quarter-inch gaps and specific dimensioned spacings ensure correct alignment within the concrete construction.

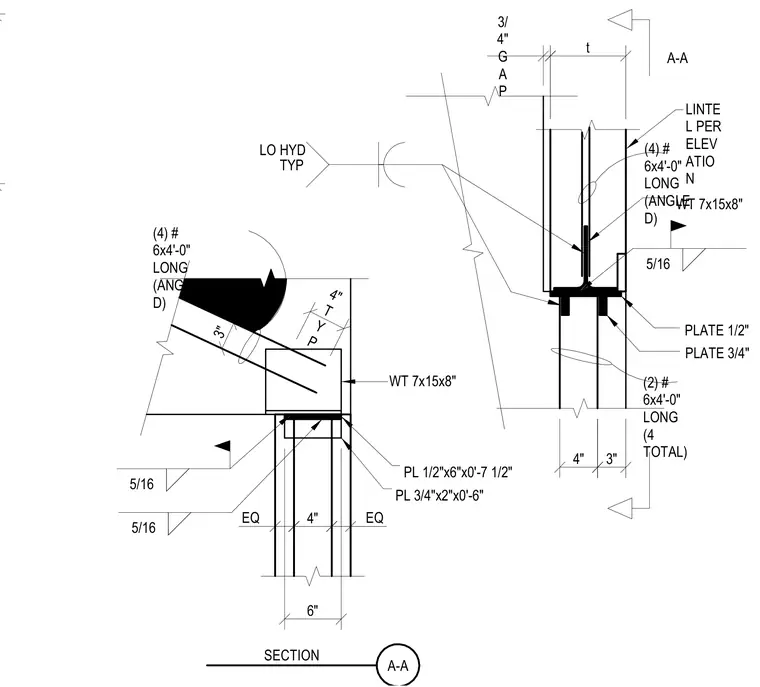

TYP t 3/ 4" G A P 3" 4" 6" EQ EQ 4" 4" T Y P 3" A-A SECTION PLATE 3/4" PLATE 1/2" WT 7x15x8" (4) # 6x4'-0" LONG (ANGLE D) (2) # 6x4'-0" LONG (4 TOTAL) LO HYD PL 3/4"x2"x0'-6" PL 1/2"x6"x0'-7 1/2" (4) # 6x4'-0" LONG (ANGLE D) WT 7x15x8" LINTE L PER ELEV ATIO N 5/16 5/16 5/16 A-A
