Full depth one-half-inch stiffener plates are welded to each side of the structural member with typical five-sixteenth-inch fillet welds. The machinery beam attachment is provided by others and requires coordination with the machinery beam location per the elevator supplier and the center at the machinery beam.

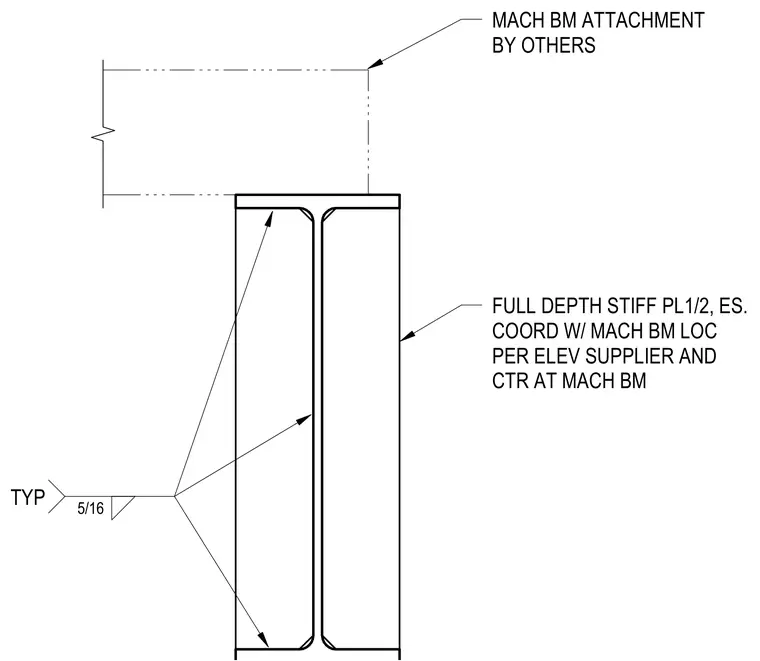

FULL DEPTH STIFF PL1/2, ES. COORD W/ MACH BM LOC PER ELEV SUPPLIER AND CTR AT MACH BM TYP 5/16 MACH BM ATTACHMENT BY OTHERS
