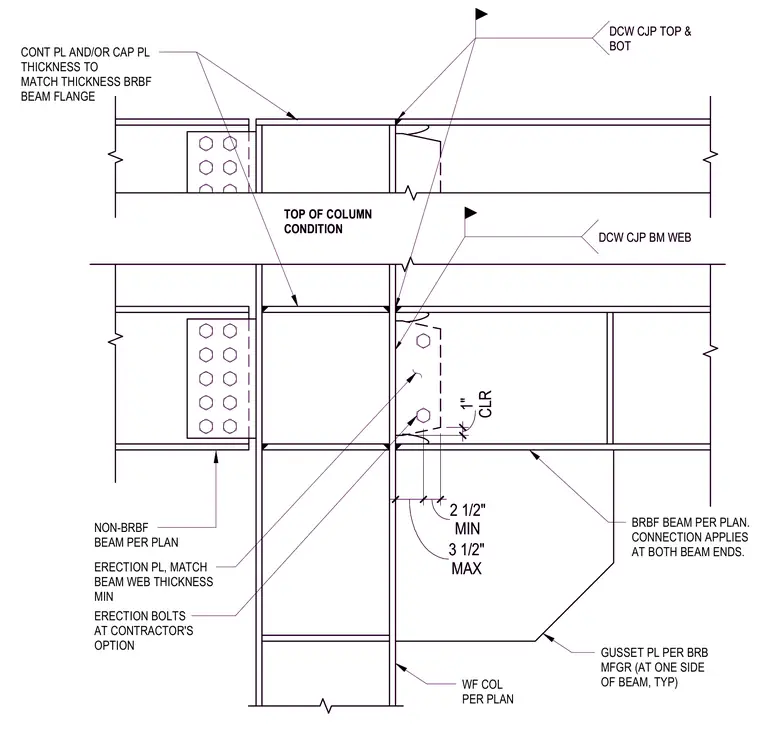

A wide-flange beam framing into a wide-flange column flange features a gusset plate located on one side of the beam per the buckling-restrained brace manufacturer specifications. The beam web connects using an erection plate matching the minimum beam web thickness with erection bolts at the contractor's option. Complete joint penetration welds secure the beam web and top and bottom flanges. Continuous plates or cap plates match the thickness of the buckling-restrained frame beam flange at the top of the column condition.
MAX 3 1/2" MIN 2 1/2" CLR 1" BRBF BEAM PER PLAN. CONNECTION APPLIES AT BOTH BEAM ENDS. WF COL PER PLAN ERECTION BOLTS AT CONTRACTOR'S OPTION NON-BRBF BEAM PER PLAN ERECTION PL, MATCH BEAM WEB THICKNESS MIN CONT PL AND/OR CAP PL THICKNESS TO MATCH THICKNESS BRBF BEAM FLANGE DCW CJP BM WEB GUSSET PL PER BRB MFGR (AT ONE SIDE OF BEAM, TYP) DCW CJP TOP & BOT TOP OF COLUMN CONDITION MAX 3 1/2" MIN 2 1/2" CLR 1" BRBF BEAM PER PLAN. CONNECTION APPLIES AT BOTH BEAM ENDS. WF COL PER PLAN ERECTION BOLTS AT CONTRACTOR'S OPTION NON-BRBF BEAM PER PLAN ERECTION PL, MATCH BEAM WEB THICKNESS MIN CONT PL AND/OR CAP PL THICKNESS TO MATCH THICKNESS BRBF BEAM FLANGE DCW CJP BM WEB GUSSET PL PER BRB MFGR (AT ONE SIDE OF BEAM, TYP) DCW CJP TOP & BOT TOP OF COLUMN CONDITION
