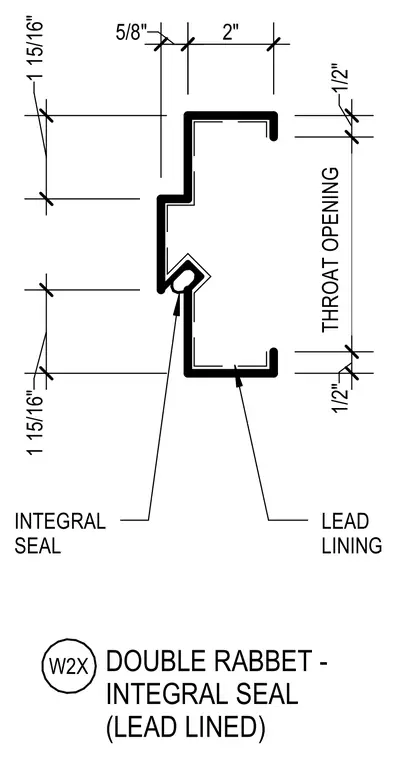

This profile detail shows a double rabbet frame equipped with an integral seal and internal lead lining for radiation shielding. Dimensions include a 2-inch frame depth, a 5/8-inch offset, and multiple 1 15/16-inch vertical segments. The throat opening measures with 1/2-inch clearances at the ends.
1 15/16" 5/8" 2" 1/2" 1/2" THROAT OPENING 1 15/16" INTEGRAL SEAL LEAD LINING DOUBLE RABBET - INTEGRAL SEAL (LEAD LINED) W2X
