A sixteen-gauge steel clip connects the jamb stud to the overhead structure, featuring three-sixteenths by two-and-a-half-inch slotted holes to accommodate vertical deflection. The horizontal leg of the clip is secured to the overhead element using three number ten self-tapping sheet metal screws at cross-laminated timber or two shot pins at steel members. Four number eight wafer head self-tapping sheet metal screws fasten the vertical leg of the clip to the jamb stud. A one-half-inch gap is maintained between the top of the stud and the track to allow for vertical movement.

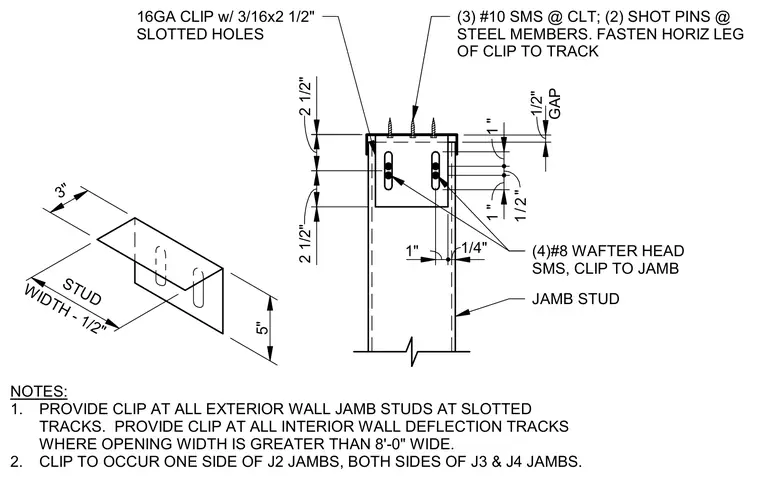

JAMB STUD (3) #10 SMS @ CLT; (2) SHOT PINS @ STEEL MEMBERS. FASTEN HORIZ LEG OF CLIP TO TRACK NOTES: 1. PROVIDE CLIP AT ALL EXTERIOR WALL JAMB STUDS AT SLOTTED TRACKS. PROVIDE CLIP AT ALL INTERIOR WALL DEFLECTION TRACKS WHERE OPENING WIDTH IS GREATER THAN 8'-0" WIDE. 2. CLIP TO OCCUR ONE SIDE OF J2 JAMBS, BOTH SIDES OF J3 & J4 JAMBS. 16GA CLIP w/ 3/16x2 1/2" SLOTTED HOLES 3" STUD WIDTH - 1/2" 5" 2 1/2" 2 1/2" 1" 1/4" GAP 1/2" 1 " 1 /2 " 1 " (4)#8 WAFTER HEAD SMS, CLIP TO JAMB
