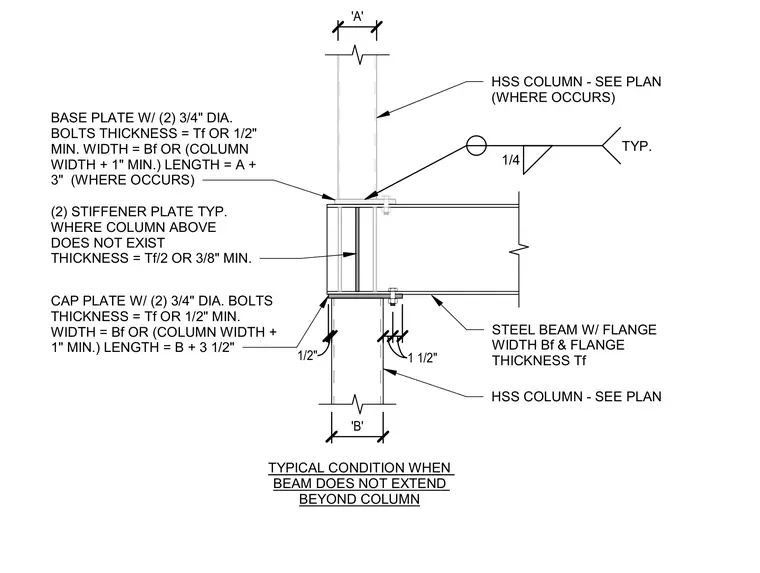

A structural steel beam terminating at an HSS column uses top and bottom plates bolted with two three-quarter-inch-diameter bolts each. The base plate equals the beam flange thickness or one-half inch minimum in thickness, with a width equal to the flange width or the column width plus one inch minimum, and length equal to dimension A plus three inches where applicable. Two typical stiffener plates are provided where the column above does not exist, sized at half the flange thickness or three-eighths inch minimum. A cap plate is also detailed with a length of dimension B plus three and one-half inches. A one-quarter-inch fillet weld is specified typically at the connection joints.
HSS COLUMN - SEE PLAN STEEL BEAM W/ FLANGE WIDTH Bf & FLANGE THICKNESS Tf BASE PLATE W/ (2) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COLUMN WIDTH + 1" MIN.) LENGTH = A + 3" (WHERE OCCURS) (2) STIFFENER PLATE TYP. WHERE COLUMN ABOVE DOES NOT EXIST THICKNESS = Tf/2 OR 3/8" MIN. 'A' 1/4 TYP. 'B' 1 1/2" 1 1/2" 1/2" CAP PLATE W/ (2) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COLUMN WIDTH + 1" MIN.) LENGTH = B + 3 1/2" HSS COLUMN - SEE PLAN (WHERE OCCURS) TYPICAL CONDITION WHEN BEAM DOES NOT EXTEND BEYOND COLUMN
