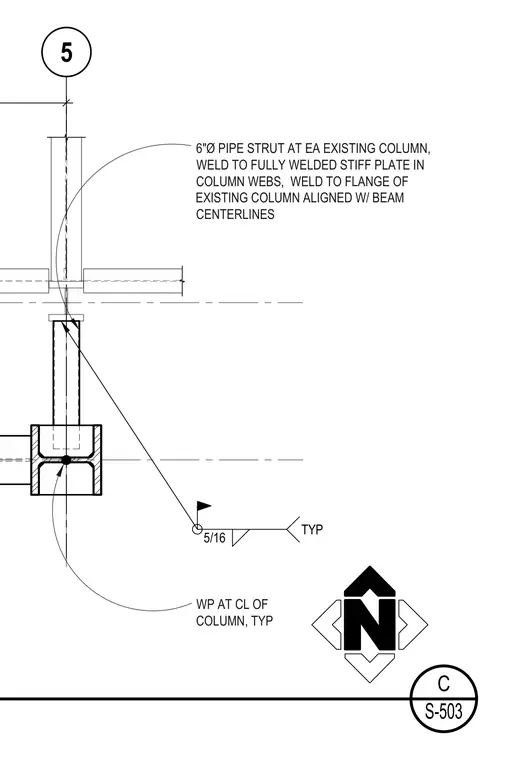

A six-inch diameter pipe strut connects to each existing steel column using a fully welded stiffener plate in the column webs. The connection is welded to the flange of the existing column and aligned with the beam centerlines. A five-sixteenths inch typical fillet weld secures the assembly with work points located at the centerline of the column.
S-503 C 6"Ø PIPE STRUT AT EA EXISTING COLUMN, WELD TO FULLY WELDED STIFF PLATE IN COLUMN WEBS, WELD TO FLANGE OF EXISTING COLUMN ALIGNED W/ BEAM CENTERLINES 5/16 TYP WP AT CL OF COLUMN, TYP 5
