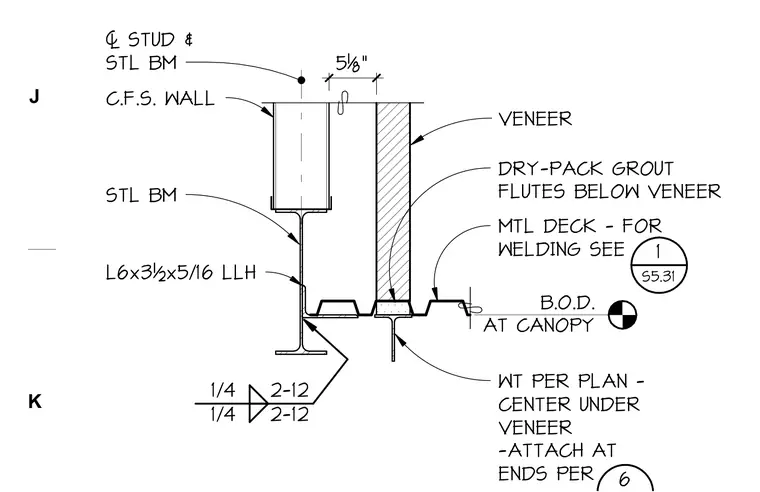

A canopy metal deck and veneer support assembly frames into cold-formed steel walls and structural steel beams. A metal deck bears on a WT section centered beneath the veneer, with flutes below the veneer filled with dry-pack grout. An L6x3-1/2x5/16 long-leg horizontal angle connects the cold-formed steel wall stud to the structural steel beam using quarter-inch fillet welds spaced at two inches on center with twelve-inch increments. The metal deck attachment is detailed per plan and references sheet S5.31 for welding requirements. The assembly establishes the bottom of deck elevation at the canopy.
AT CANOPY B.O.D. 5<" VENEER DRY-PACK GROUT FLUTES BELOW VENEER MTL DECK - FOR WELDING SEE WT PER PLAN - CENTER UNDER VENEER -ATTACH AT ENDS PER L6x3½x5/16 LLH STL BM C.F.S. WALL 1/4 2-12 1/4 2-12 1 S5.31 6 ! STUD & STL BM J K
