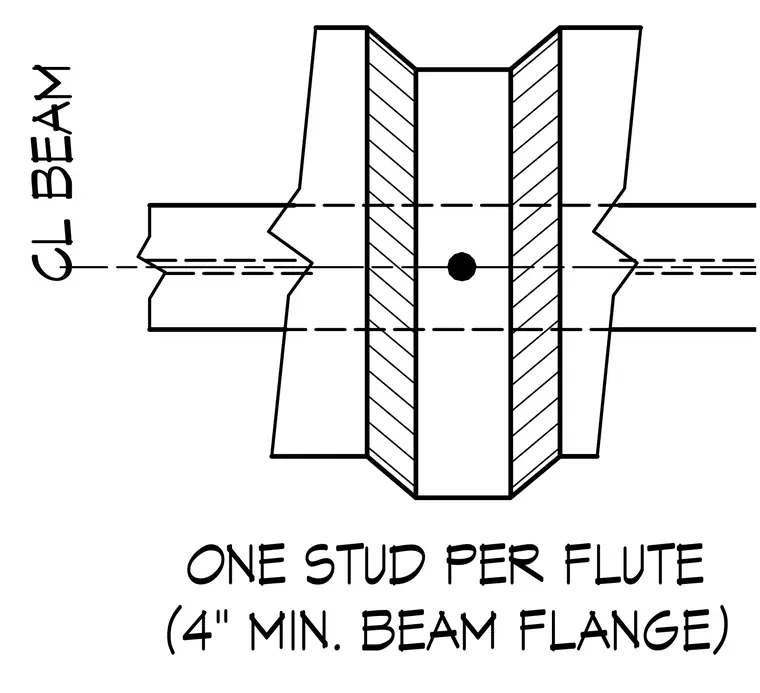

Shear stud connection centered on a structural beam flange with one stud per flute required. The supporting beam flange requires a four-inch minimum width to accommodate the stud layout.
ONE STUD PER FLUTE CL BEAM (4" MIN. BEAM FLANGE)
