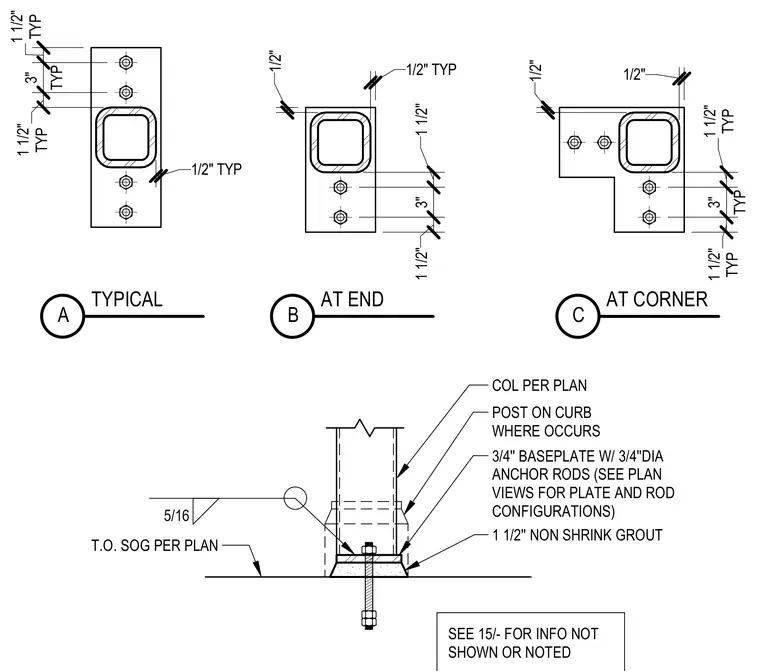

A hollow structural section column is anchored to a concrete curb set at the top of the slab on grade. The column bears on a three-quarter-inch base plate secured by three-quarter-inch diameter anchor rods. A one-and-a-half-inch layer of non-shrink grout fills the space beneath the base plate. Plan configurations illustrate typical, end, and corner plate conditions with specified edge distances and bolt spacings. A five-sixteenth fillet weld connects the column to the base plate assembly.
5/16 POST ON CURB WHERE OCCURS SEE 15/- FOR INFO NOT SHOWN OR NOTED 1 1/2'' NON SHRINK GROUT COL PER PLAN 3/4'' BASEPLATE W/ 3/4''DIA ANCHOR RODS (SEE PLAN VIEWS FOR PLATE AND ROD CONFIGURATIONS) T.O. SOG PER PLAN TYPICAL A TYP 1 1/2" TYP 3" TYP 1 1/2" 1/2" TYP 1/2" 1 1/2" 3" 1 1/2" 1/2" TYP AT END B TYP 1 1/2" TYP 3" TYP 1 1/2" 1/2" AT CORNER C 1/2"
