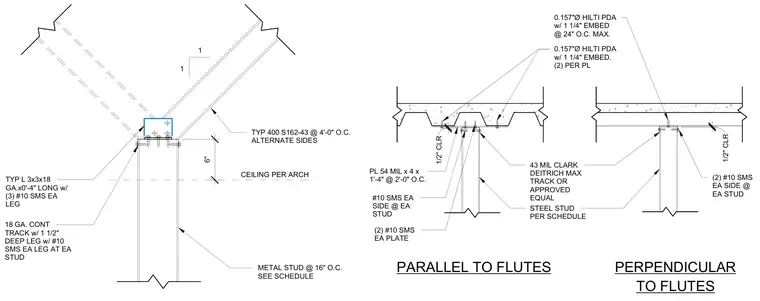

Cold-formed steel partitions anchor to an overhead concrete-filled metal deck at the head-of-wall connection. The assembly utilizes 43 mil Clark Dietrich Max Track or approved equal fastened with two number ten self-drilling screws on each side at each stud. A fifty-four mil plate measuring four inches by one foot four inches is secured to the deck flutes with 0.157 inch diameter Hilti powder-actuated fasteners having a one-and-one-quarter-inch embedment spaced at twenty-four inches on center maximum. Lateral bracing is provided by typical 3x3x18 gauge angles four inches long connected with three number ten sheet metal screws on each leg. A half-inch clearance is maintained at the track connection to accommodate structural deflection.
1 1 TYP L 3x3x18 GA.x0'-4" LONG w/ (3) #10 SMS EA LEG 18 GA. CONT TRACK w/ 1 1/2" DEEP LEG w/ #10 SMS EA LEG AT EA STUD CEILING PER ARCH 6" TYP 400 S162-43 @ 4'-0" O.C. ALTERNATE SIDES METAL STUD @ 16" O.C. SEE SCHEDULE 43 MIL CLARK DEITRICH MAX TRACK OR APPROVED EQUAL STEEL STUD PER SCHEDULE (2) #10 SMS EA SIDE @ EA STUD 0.157"Ø HILTI PDA w/ 1 1/4" EMBED. (2) PER PL 0.157"Ø HILTI PDA w/ 1 1/4" EMBED @ 24" O.C. MAX. 1/2" CLR 1/2" CLR PL 54 MIL x 4 x 1'-4" @ 2'-0" O.C. #10 SMS EA SIDE @ EA STUD (2) #10 SMS EA PLATE PARALLEL TO FLUTES PERPENDICULAR TO FLUTES
