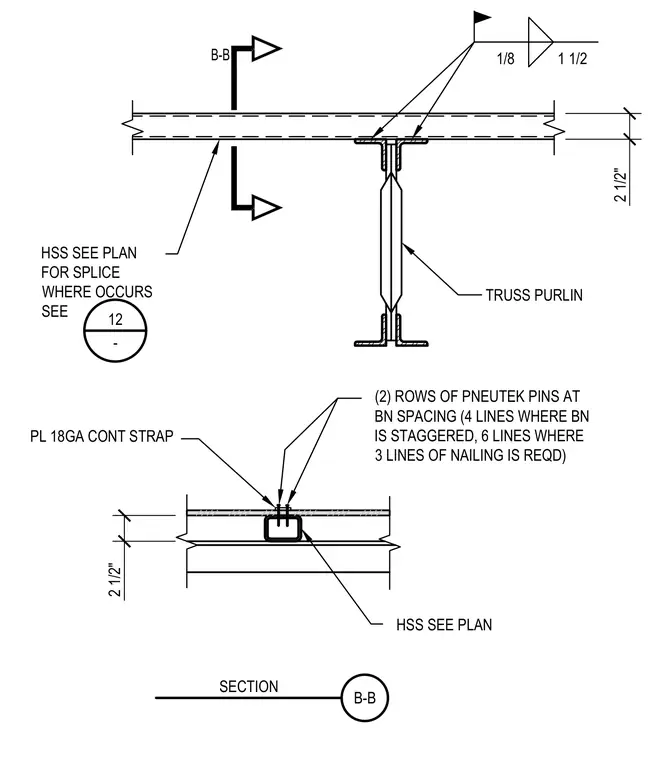

A hollow structural section member connects to a truss purlin with a 2-1/2 inch depth, detailed with a continuous 18-gauge steel strap secured by two rows of Pneutek pins at beam-nailing spacing. Additional fastening configurations require four lines of pins where nailing is staggered and six lines where three lines of nailing are specified. A splice condition is sized per the structural plans.
2 1/2" TRUSS PURLIN B-B 1/8 1 1/2 HSS SEE PLAN FOR SPLICE WHERE OCCURS SEE 12 - 2 1/2" HSS SEE PLAN PL 18GA CONT STRAP B-B SECTION (2) ROWS OF PNEUTEK PINS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
