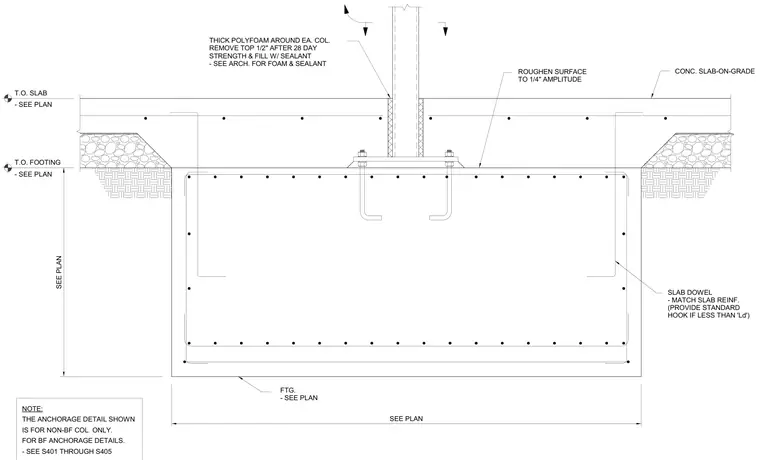

A column bears on a base plate secured to a concrete footing, surrounded by a concrete slab-on-grade. Thick polyfoam wraps the column base through the slab depth, with the top half-inch removed after twenty-eight-day concrete strength and filled with sealant. The top surface of the concrete footing is roughened to one-quarter-inch amplitude. Slab dowels match the slab reinforcement and include standard hooks when development length is less than required. This anchorage detail applies exclusively to non-braced frame columns, while braced frame anchorages are detailed elsewhere.
SEE PLAN SEE PLAN NOTE: THE ANCHORAGE DETAIL SHOWN IS FOR NON-BF COL. ONLY. FOR BF ANCHORAGE DETAILS. - SEE S401 THROUGH S405 T.O. SLAB - SEE PLAN T.O. FOOTING - SEE PLAN THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT ROUGHEN SURFACE TO 1/4" AMPLITUDE CONC. SLAB-ON-GRADE FTG. - SEE PLAN SLAB DOWEL - MATCH SLAB REINF. (PROVIDE STANDARD HOOK IF LESS THAN 'Ld')
