Roof Overhang and Window Shade Roller Connection

Materials

Steel Timber / Wood

Elements

Columns Beams Walls Windows Curtain Walls Roofs Decks Arches Connections / Plates

Connections

Welded Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

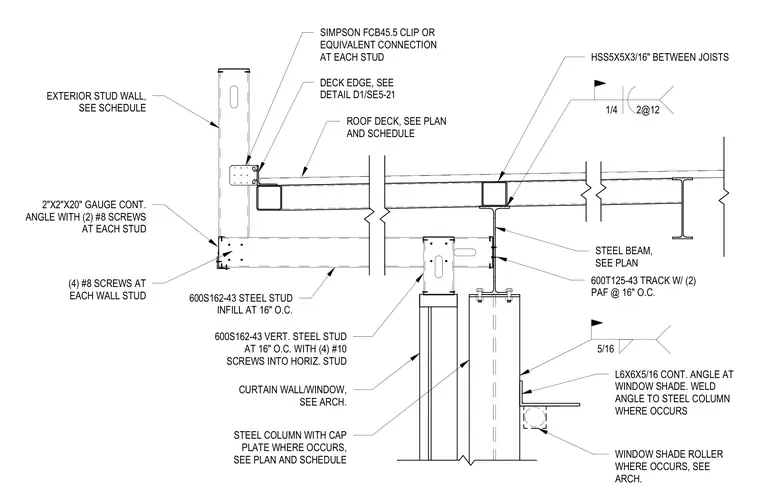

A roof overhang condition incorporates a window shade roller support mounted to a steel column. A continuous L6x6x5/16 angle is welded to the steel column with a 5/16 fillet weld to support the window shade roller. The structural framing includes a steel beam supporting an HSS5x5x3/16 member between joists with a 1/4 fillet weld at 12 inches on center. Exterior stud walls utilize 600S162-43 vertical steel studs spaced at 16 inches on center, connected with four number 10 screws into the horizontal stud and a continuous 2x2x20 gauge angle secured with two number 8 screws at each stud. A Simpson FCB45.5 clip or equivalent connection secures the deck edge at each stud.
