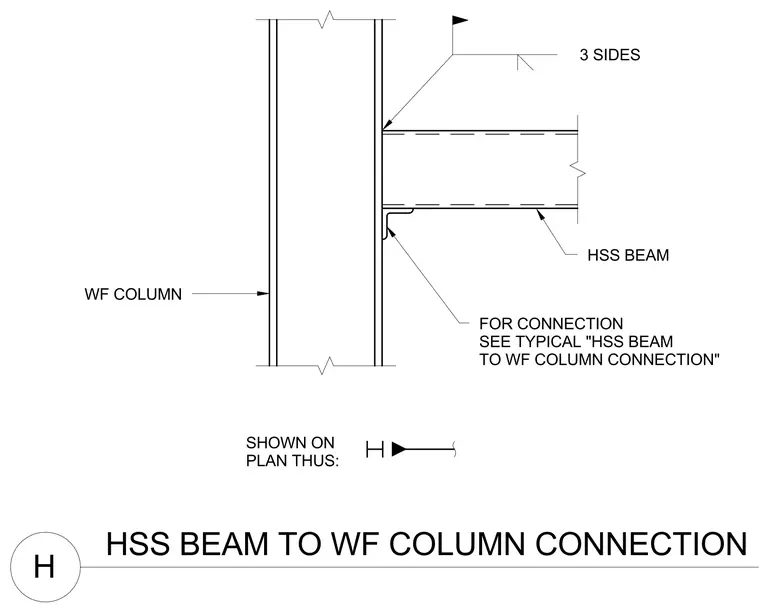

A hollow structural section beam frames into a wide flange steel column. The hollow structural section beam connects to the wide flange column with a weld specified on three sides, accompanied by a supporting seat angle underneath. For additional connection requirements, reference is made to the typical HSS beam to wide flange column connection details. A plan symbol is included to indicate how the detail is oriented and referenced on the structural floor plan.
HSS BEAM TO WF COLUMN CONNECTION H SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
