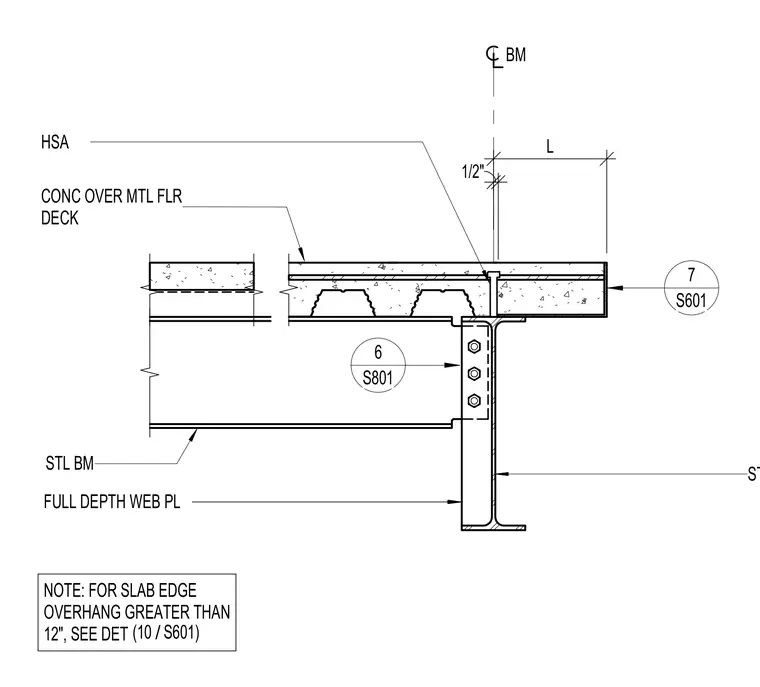

A concrete slab over a metal floor deck bears on a steel beam connected via a full depth web plate with bolts. A dimensioned overhang with a headed stud anchor is detailed at the beam centerline. A drawing note indicates that for slab edge overhangs greater than twelve inches, a separate detail should be referenced.
STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET FULL DEPTH WEB PL 6 S801 7 S601 / (10 S601)
