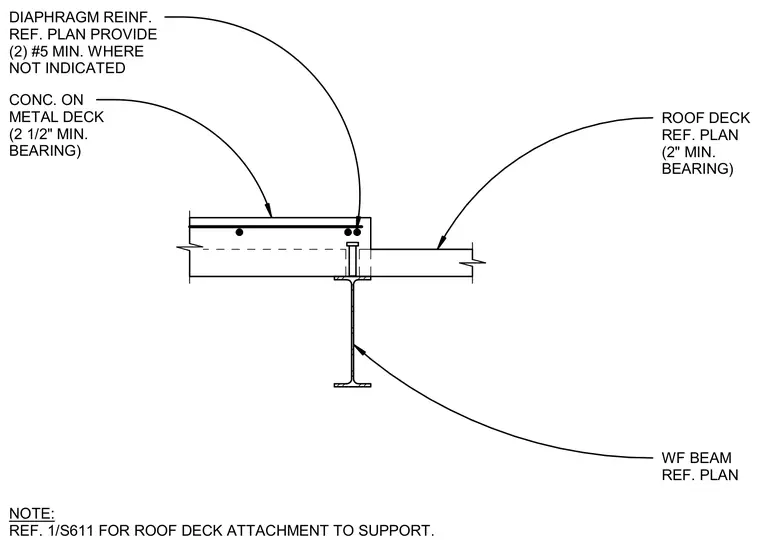

A wide-flange beam supports both a concrete-topped metal deck with a two-and-a-half-inch minimum bearing and an adjacent roof deck with a two-inch minimum bearing. The concrete slab features a minimum of two number five reinforcing bars for diaphragm reinforcement where not otherwise indicated. Additional roof deck attachment requirements are referenced to detail one on sheet S611.
DIAPHRAGM REINF. REF. PLAN PROVIDE (2) #5 MIN. WHERE NOT INDICATED CONC. ON METAL DECK (2 1/2" MIN. BEARING) ROOF DECK REF. PLAN (2" MIN. BEARING) WF BEAM REF. PLAN NOTE: REF. 1/S611 FOR ROOF DECK ATTACHMENT TO SUPPORT.
