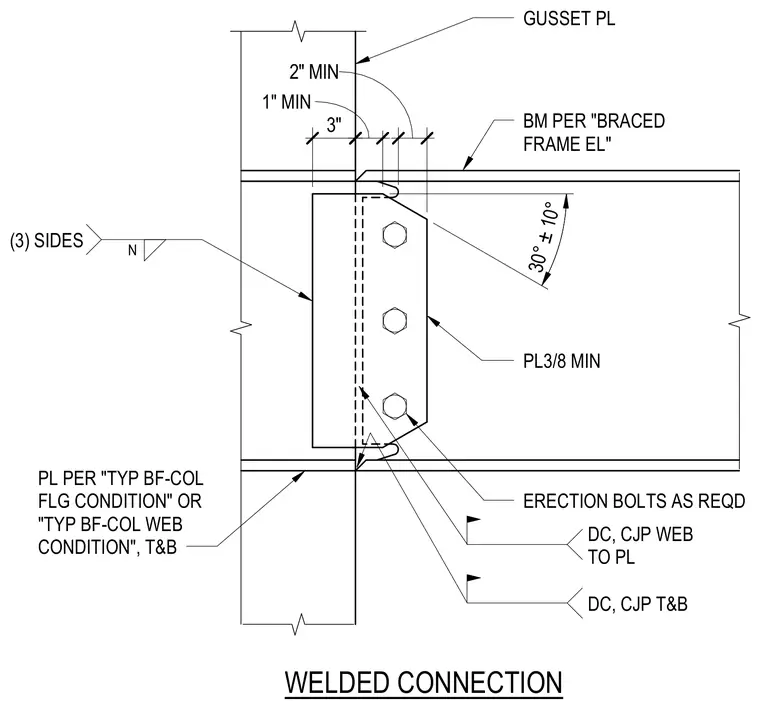

A structural beam frames into a column using a three-eighths-inch minimum gusset plate. Complete joint penetration welds connect the web and top and bottom flanges to the plate. Three erection bolts secure the connection during assembly, supplemented by welds on three sides. Minimum clearances of one inch and two inches are maintained around the connection interface.
BM PER "BRACED FRAME EL" DC, CJP WEB TO PL DC, CJP T&B GUSSET PL PL PER "TYP BF-COL FLG CONDITION" OR "TYP BF-COL WEB CONDITION", T&B (3) SIDES N PL3/8 MIN 3" ERECTION BOLTS AS REQD 1" MIN 2" MIN 30° ± 10° 1" MIN WELDED CONNECTION
