Metal deck runs parallel to the face of concrete and bears against a structural steel ledger angle. The ledger angle is secured to the concrete with three-quarter-inch diameter expansion anchors at spaced intervals. A twenty-gauge minimum closure plate is provided at the edge alongside concrete dowels as required. Dimensions establish the anchor embedment depth and vertical placement relative to the deck.

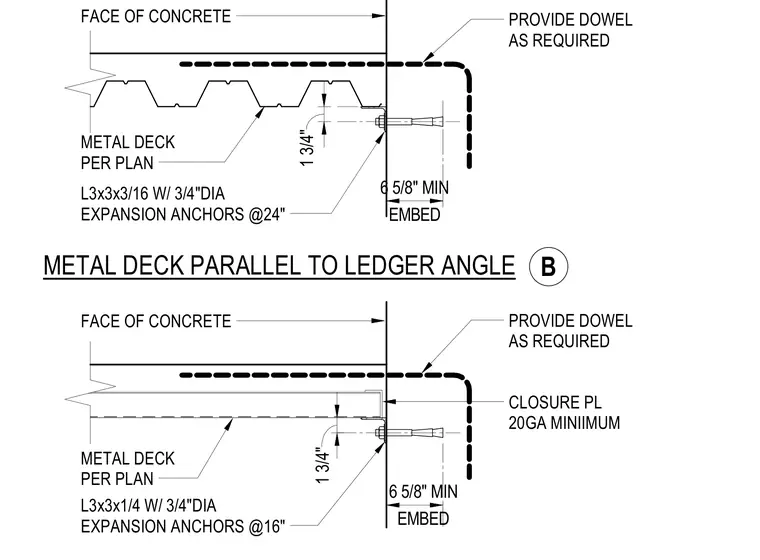

PROVIDE DOWEL AS REQUIRED PROVIDE DOWEL AS REQUIRED CLOSURE PL 20GA MINIIMUM METAL DECK PER PLAN L3x3x1/4 W/ 3/4"DIA EXPANSION ANCHORS @16" L3x3x3/16 W/ 3/4"DIA EXPANSION ANCHORS @24" METAL DECK PER PLAN FACE OF CONCRETE FACE OF CONCRETE METAL DECK PARALLEL TO LEDGER ANGLE 1 3/4" B 1 3/4" EMBED 6 5/8" MIN EMBED 6 5/8" MIN
