Brace and Hanger Connection to Steel Beam

Materials

Steel

Elements

Beams Bracing

Connections

Bracing Connection Timber / Mass-Timber Connection

About this detail

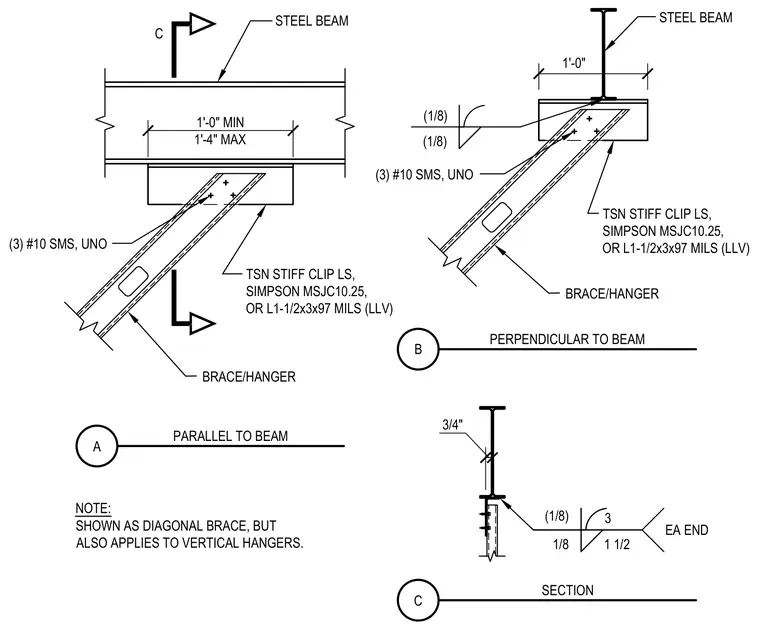

A structural steel beam supports a diagonal brace or vertical hanger through a TSN Stiff Clip LS, Simpson MSJC10.25, or L1-1/2x3x97 MILS angle. Three number 10 sheet metal screws secure the brace to the clip angle, utilized on each end as noted. The clip attaches to the underside of the steel beam flange. The assembly accommodates both diagonal bracing and vertical hanger configurations.
