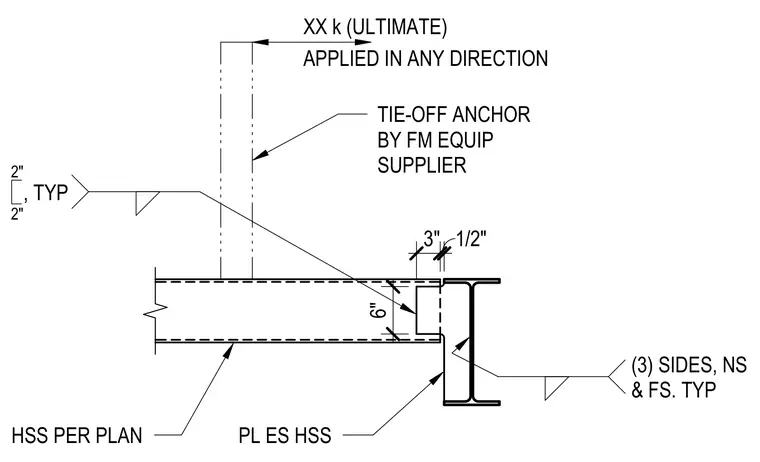

A tie-off anchor provided by a fall protection equipment supplier mounts to a hollow structural section sized per plan. The structural connection incorporates a plate end support for the hollow structural section welded to the supporting steel member with welds on three sides, near side and far side, typically. The structural assembly is designed to resist an ultimate load applied in any direction.
TIE-OFF ANCHOR BY FM EQUIP SUPPLIER XX k (ULTIMATE) 3" 1/2" 6" HSS PER PLAN PL ES HSS 2" 2" APPLIED IN ANY DIRECTION (3) SIDES, NS & FS. TYP , TYP
