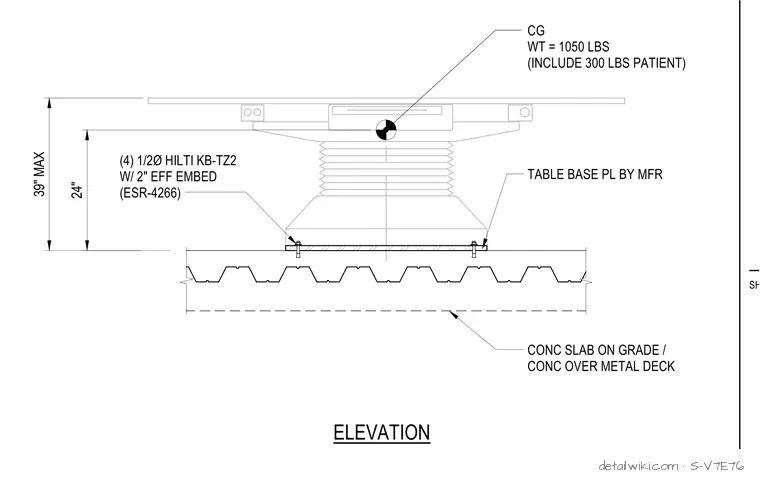

The patient table is anchored to a concrete slab on grade or concrete over metal deck with four 1/2-inch diameter Hilti KB-TZ2 expansion anchors providing a two-inch effective embedment per ESR-4266. A table base plate provided by the manufacturer distributes the loads into the concrete assembly. The center of gravity weight of the assembly is 1,050 pounds, which includes 300 pounds for the patient. The maximum elevation from the slab to the top of the table is 39 inches, with the center of gravity located at a height of 24 inches.
CG WT = 1050 LBS (INCLUDE 300 LBS PATIENT) 24" (4) 1/2Ø HILTI KB-TZ2 W/ 2" EFF EMBED (ESR-4266) TABLE BASE PL BY MFR CONC SLAB ON GRADE / CONC OVER METAL DECK 39" MAX ELEVATION PROJECT NUMBER SHEET TITLE
