Bolted Beam to Column Braced Frame Connection

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

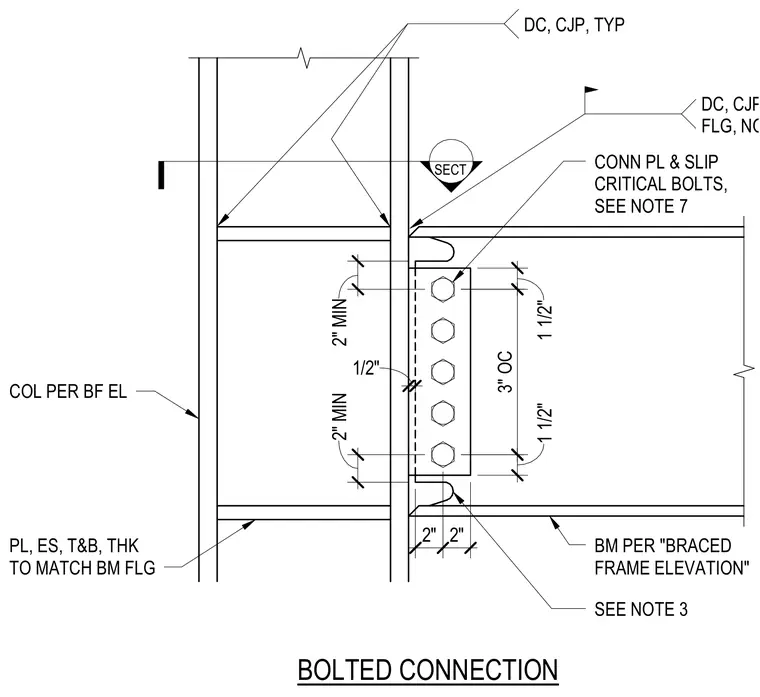

A structural steel beam connects to a column using a connection plate secured with slip-critical bolts at three inches on center, positioned with one and one-half inch edge clearances. The top and bottom beam flanges feature complete-joint-penetration welds with a thickness matching the beam flange. Additional plates at the column and beam interface provide lateral support and bracing per the structural frame elevation. Dimensions specify two-inch minimum clearances and one-half inch offsets.
