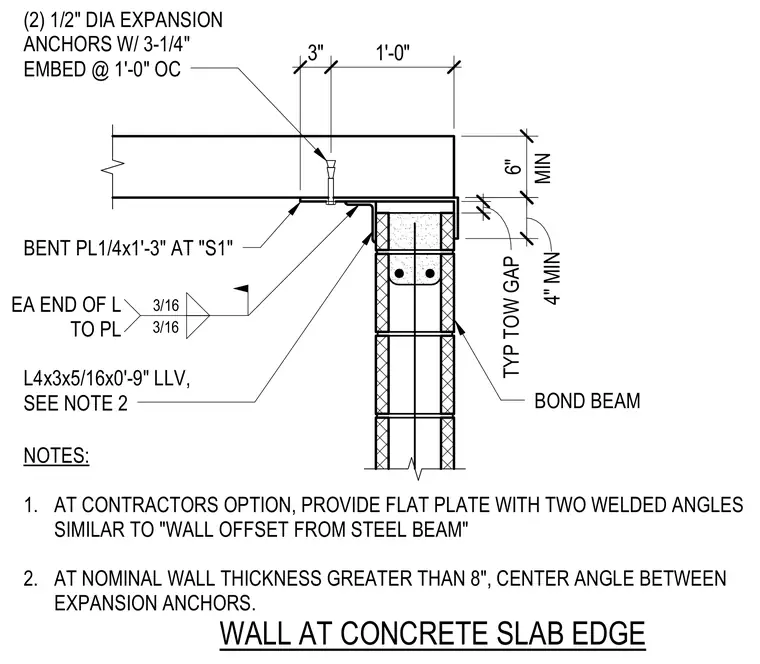

An L4x3x5/16 by nine-inch long leg vertical structural steel angle connects to a bent plate anchored beneath a concrete slab edge. Two one-half-inch diameter expansion anchors with three-and-a-quarter-inch embedment secure the bent plate to the slab at twelve inches on center. A three-sixteenths-inch fillet weld joins each end of the angle to the plate. A bond beam supports the wall assembly below, maintaining a typical top-of-wall gap.
L4x3x5/16x0'-9" LLV, SEE NOTE 2 BENT PL1/4x1'-3" AT "S1" (2) 1/2" DIA EXPANSION ANCHORS W/ 3-1/4" EMBED @ 1'-0" OC WALL AT CONCRETE SLAB EDGE 3" 1'-0" 4" MIN 6" BOND BEAM 1 1/8" TYP TOW GAP MIN EA END OF L TO PL 3/16 3/16 NOTES: 1. AT CONTRACTORS OPTION, PROVIDE FLAT PLATE WITH TWO WELDED ANGLES SIMILAR TO "WALL OFFSET FROM STEEL BEAM" 2. AT NOMINAL WALL THICKNESS GREATER THAN 8", CENTER ANGLE BETWEEN EXPANSION ANCHORS.
