Cold-formed steel framing members feature standardized web punchouts with strict dimensional limits for service penetrations. The diamond-shaped stud punchout allows a maximum height of two and one-half inches and a maximum length of four and one-half inches. The slotted factory punchout requires a minimum edge distance of ten inches from the bearing condition and a twenty-four inch minimum spacing between penetrations. Overall member depth is maintained at a minimum of eight inches.

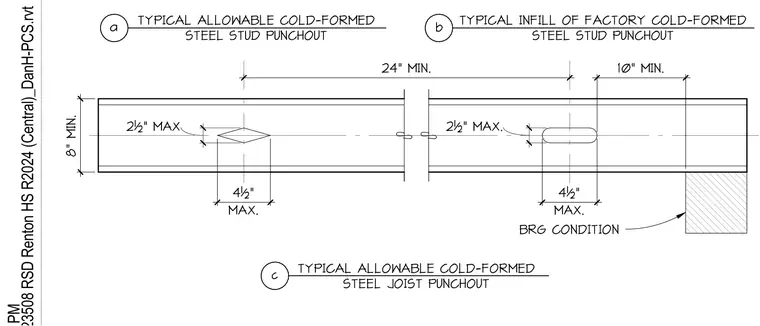

TYPICAL ALLOWABLE COLD-FORMED STEEL STUD PUNCHOUT TYPICAL INFILL OF FACTORY COLD-FORMED STEEL STUD PUNCHOUT 2½" MAX MAX. 4½" 8" MIN. MAX. 4½" 2½" MAX. 24" MIN. BRG CONDITION TYPICAL ALLOWABLE COLD-FORMED STEEL JOIST PUNCHOUT 10" MIN. a b c
