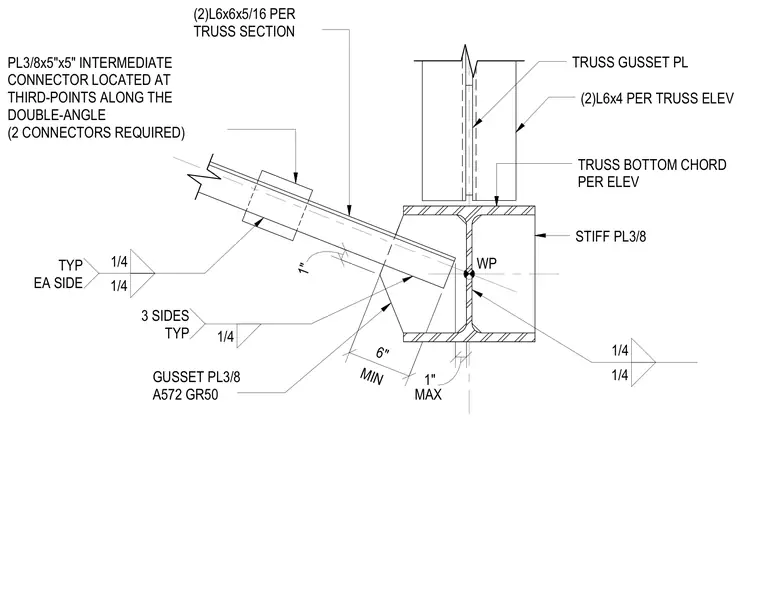

A structural steel truss bottom chord bracing connection ties lateral bracing angles to the bottom chord assembly at a working point. Two L6x6x5/16 angles connect back-to-back using intermediate 3/8-inch by 5-inch by 5-inch plate connectors located at third-points along the double-angle span, requiring two connectors total. These bracing angles weld to a 3/8-inch thick ASTM A572 Grade 50 gusset plate with quarter-inch fillet welds applied to three sides typically on each side. The gusset plate aligns with a truss bottom chord member backed by 3/8-inch stiffener plates. Quarter-inch fillet welds secure the connection assembly in accordance with the structural elevation and section details.
WP TRUSS GUSSET PL (2)L6x4 PER TRUSS ELEV GUSSET PL3/8 A572 GR50 STIFF PL3/8 (2)L6x6x5/16 PER TRUSS SECTION TRUSS BOTTOM CHORD PER ELEV PL3/8x5"x5" INTERMEDIATE CONNECTOR LOCATED AT THIRD-POINTS ALONG THE DOUBLE-ANGLE (2 CONNECTORS REQUIRED) MAX 1" MIN 6" 1" 1/4 1/4 1/4 3 SIDES TYP 1/4 1/4 TYP EA SIDE
