A structural steel beam connects over a transverse support beam using a bolted shear plate and a top plate sized per the beam flange dimensions. The top plate is left unwelded directly over the transverse beam. Five-sixteenth inch fillet welds attach the plates, with a cope detail specified at the bottom flange. Erection bolts are provided as required per plan.

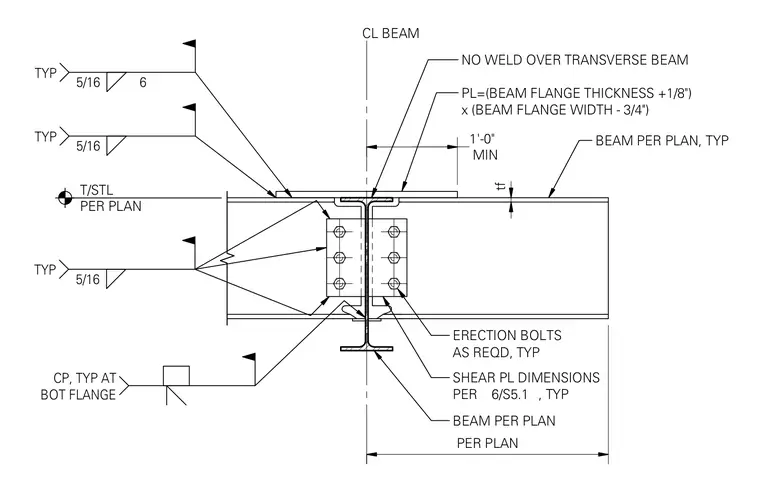

5/16 6 TYP 5/16 TYP CP, TYP AT BOT FLANGE 5/16 TYP CL BEAM NO WELD OVER TRANSVERSE BEAM PL=(BEAM FLANGE THICKNESS +1/8") x (BEAM FLANGE WIDTH - 3/4") BEAM PER PLAN, TYP ERECTION BOLTS AS REQD, TYP SHEAR PL DIMENSIONS PER , TYP BEAM PER PLAN PER PLAN tf MIN 1'-0" T/STL PER PLAN 6/S5.1
