Deck Parallel and Perpendicular to Beam Bracing Details

Materials

Elements

Beams Floors / Slabs Decks Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Bolted Connection Shear Stud / Composite Deck Attachment Embed Plate

About this detail

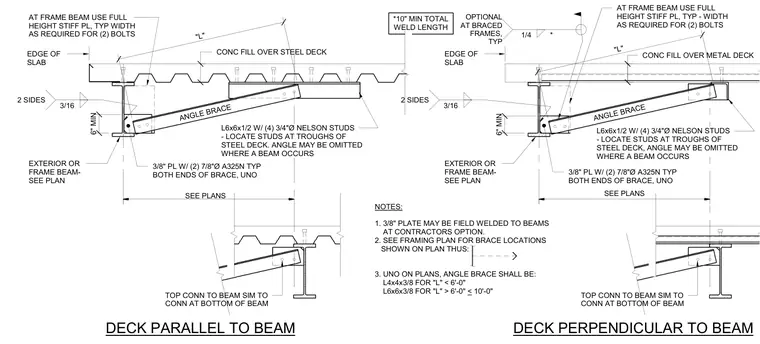

Angle brace connections frame into steel beams with concrete fill over metal deck, shown in both parallel and perpendicular deck orientations. The angle brace uses an L6x6x1/2 angle with four 3/4-inch-diameter Nelson studs located at the troughs of the steel deck, though the angle may be omitted where a beam occurs exterior or at a frame beam as indicated on the plan. A three-eighths-inch plate with two 7/8-inch-diameter A325N bolts connects both ends of the brace unless otherwise noted, with the plate optionally field welded to the beams at the contractor's option. At frame beams, a full-height stiffener plate is provided with a width as required for two bolts, welded with a 3/16-inch fillet weld on two sides and a ten-inch minimum total weld length. Unspecified angle braces shall be L4x4x3/8 for lengths under six feet and L6x6x3/8 for lengths between six and ten feet.
