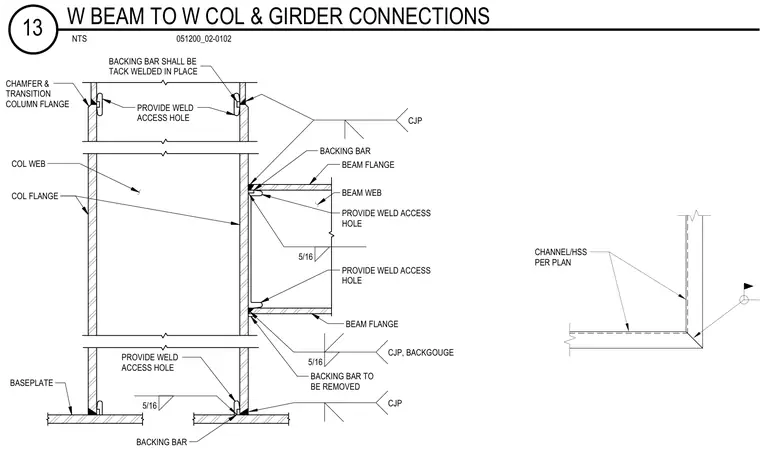

Wide flange beam to wide flange column moment connections feature complete joint penetration welds at the beam flanges with backing bars and weld access holes. The beam web connects with five-sixteenth inch fillet welds. A chamfer and transition is provided at the column flange with tack-welded backing bars, and base plates are anchored with fillet welds. Channels or hollow structural sections are sized per plan.
CHAMFER & TRANSITION COLUMN FLANGE BACKING BAR SHALL BE TACK WELDED IN PLACE PROVIDE WELD ACCESS HOLE CJP BACKING BAR PROVIDE WELD ACCESS HOLE 5/16 PROVIDE WELD ACCESS HOLE 5/16 CJP, BACKGOUGE BACKING BAR TO BE REMOVED CJP PROVIDE WELD ACCESS HOLE 5/16 BACKING BAR BASEPLATE COL FLANGE COL WEB BEAM FLANGE BEAM FLANGE BEAM WEB CHANNEL/HSS PER PLAN NTS W BEAM TO W COL & GIRDER CONNECTIONS 13 051200_02-0102
