Structural · S-V6VKM

Free Standing CMU Wall at Trash Enclosure Foundation

Materials

Elements

Walls Floors / Slabs Arches Site / Paving Reinforcing

About this detail

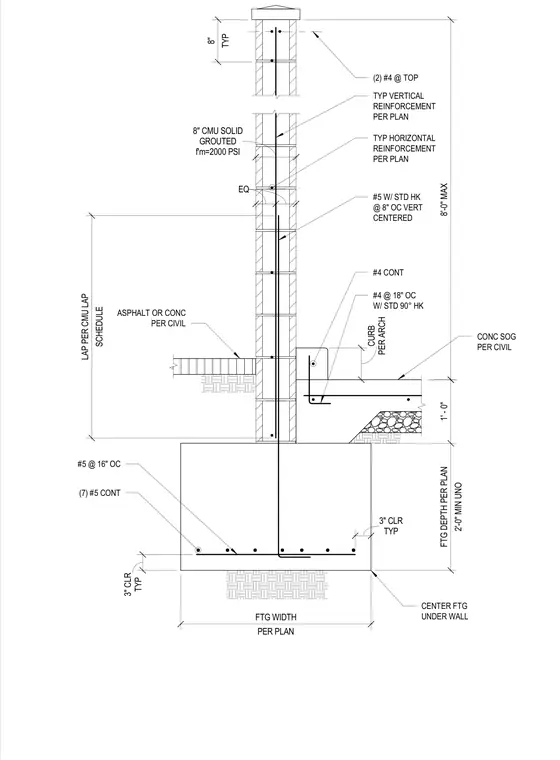

An eight-foot maximum height free-standing concrete masonry unit wall is supported by a continuous concrete footing. The eight-inch CMU wall is solid grouted with a specified masonry compressive strength of two thousand psi and includes two number four top bars, typical horizontal reinforcing sized per plan, and typical vertical reinforcing centered vertically. The continuous concrete footing features a minimum two-foot width unless otherwise noted, a one-foot depth, and a three-inch clear cover, reinforced with seven continuous number five bars and number five bars spaced at sixteen inches on center. A concrete slab on grade and asphalt or concrete paving abut the wall base, tied in with number four continuous bars and number four bars at eighteen inches on center with standard ninety-degree hooks.
