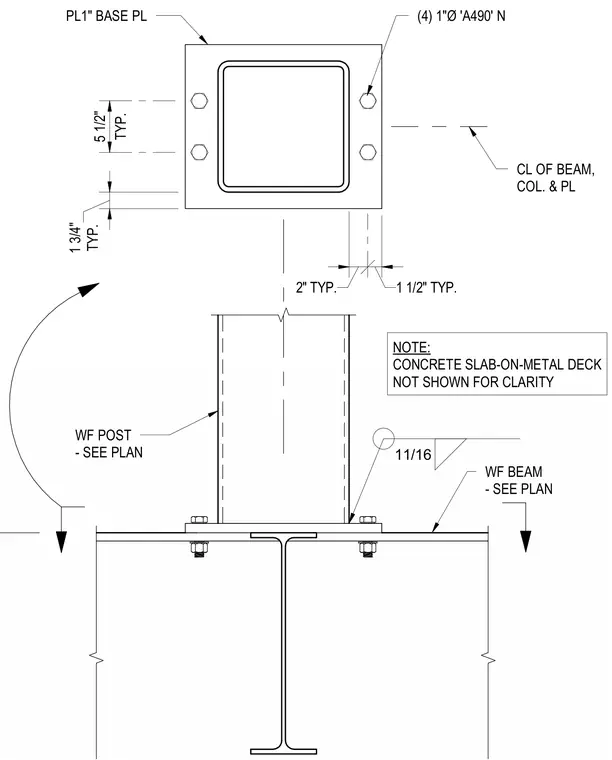

A wide-flange post connects to a wide-flange roof beam using a one-inch base plate welded with an 11/16-inch fillet weld. Four one-inch diameter A490 bolts secure the base plate arrangement. The concrete slab-on-metal deck is omitted from the view for clarity. Alignment is maintained along the centerline of the beam, column, and plate.
1 1/2" TYP. 2" TYP. TYP. 5 1/2" 11/16 WF BEAM - SEE PLAN (4) 1"Ø 'A490' N CL OF BEAM, COL. & PL PL1" BASE PL WF POST - SEE PLAN NOTE: CONCRETE SLAB-ON-METAL DECK NOT SHOWN FOR CLARITY TYP. 1 3/4"
