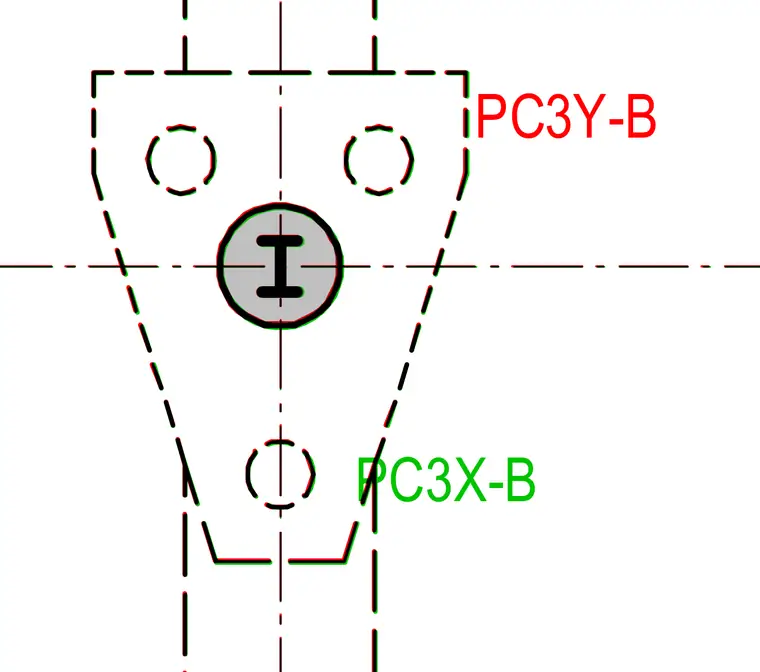

Precast connection assembly featuring structural insert identifiers PC3Y-B and PC3X-B aligned along central axes. The detail shows bolted or embedded connection points with designated geometric layout lines. Fastener locations and anchor points are indicated for structural alignment.
