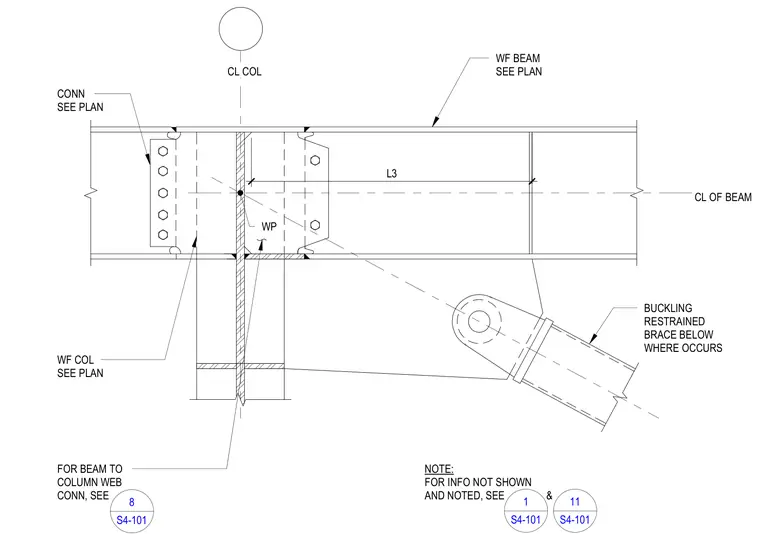

A wide-flange beam frames into the web of a wide-flange column with a bolted connection sized per plan. A buckling restrained brace connects below where it occurs, aligning with the work point at the column web centerline. Additional connection details are referenced on separate sheets for the beam-to-column web intersection.
WF BEAM SEE PLAN WP CL OF BEAM FOR BEAM TO COLUMN WEB CONN, SEE NOTE: FOR INFO NOT SHOWN AND NOTED, SEE & WF COL SEE PLAN CONN SEE PLAN BUCKLING RESTRAINED BRACE BELOW WHERE OCCURS CL COL L3 1 S4-101 11 S4-101 8 S4-101
