Structural · S-V6D3W

Typical Brace Top Connections at Steel Beam

Materials

Concrete Steel Metal (misc.)

Elements

Beams Decks Bracing Connections / Plates

Connections

Bracing Connection Bolted Connection

About this detail

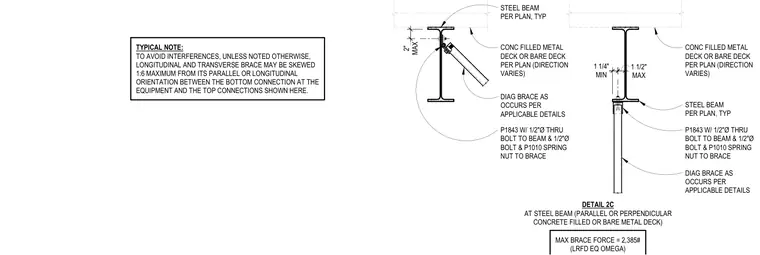

Typical top brace connections anchor diagonal bracing to a steel beam below a concrete-filled or bare metal deck. The assembly utilizes a P1843 attachment fitting secured with a half-inch diameter through-bolt to the beam, along with a half-inch diameter bolt and P1010 spring nut connecting to the brace. Dimensions indicate a minimum one-and-a-quarter-inch and maximum one-and-a-half-inch spacing, with a maximum two-inch offset. The maximum brace force is limited to 2,385 pounds under LRFD earthquake load combinations. A note permits longitudinal and transverse braces to be skewed up to a maximum of one-to-six from parallel or longitudinal orientation to avoid interferences.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
