An HSS14x4 member connects to an HSS6x6 structural steel member sized per plan. The connection uses L7x4x3/8 angles on each side secured with two three-quarter-inch diameter through bolts. Five-sixteenth-inch fillet welds are applied to three sides typically. A contractor option permits field welding the angles to the HSS in lieu of shop welding.

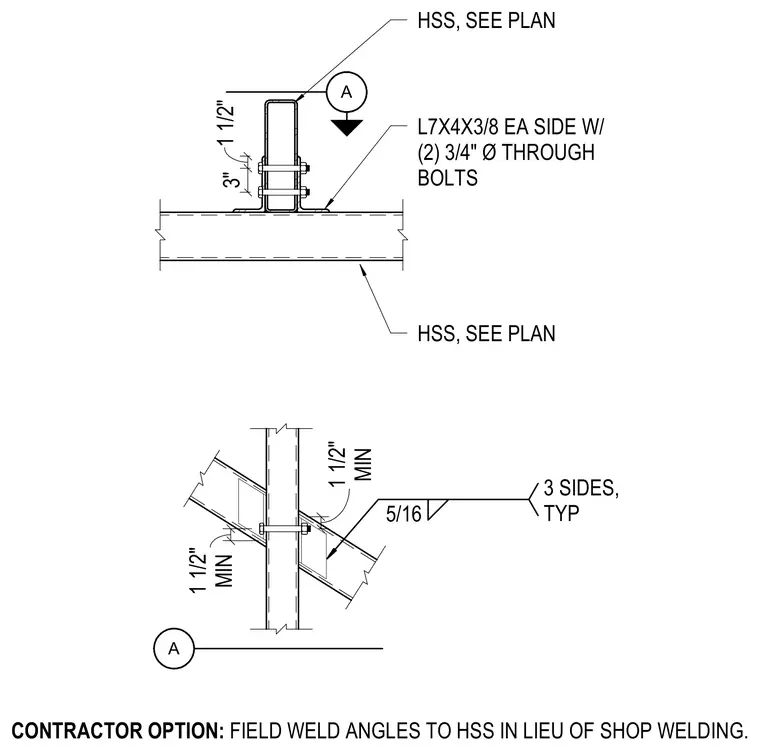

A A L7X4X3/8 EA SIDE W/ (2) 3/4" Ø THROUGH BOLTS 3" 1 1/2" MIN 1 1/2" MIN 1 1/2" 5/16 3 SIDES, TYP CONTRACTOR OPTION: FIELD WELD ANGLES TO HSS IN LIEU OF SHOP WELDING. HSS, SEE PLAN HSS, SEE PLAN
