An HSS8x8 hollow structural section column attaches to an elevator pit wall and slab on grade using a 3/4-inch steel plate secured by two 5/8-inch diameter Simpson Titen-HD screw anchors with 4 3/4-inch embedment. The vertical member maintains a typical one-half-inch clearance from the wall assembly. Welds sized at one-quarter inch connect the steel framing components typical at specified locations.

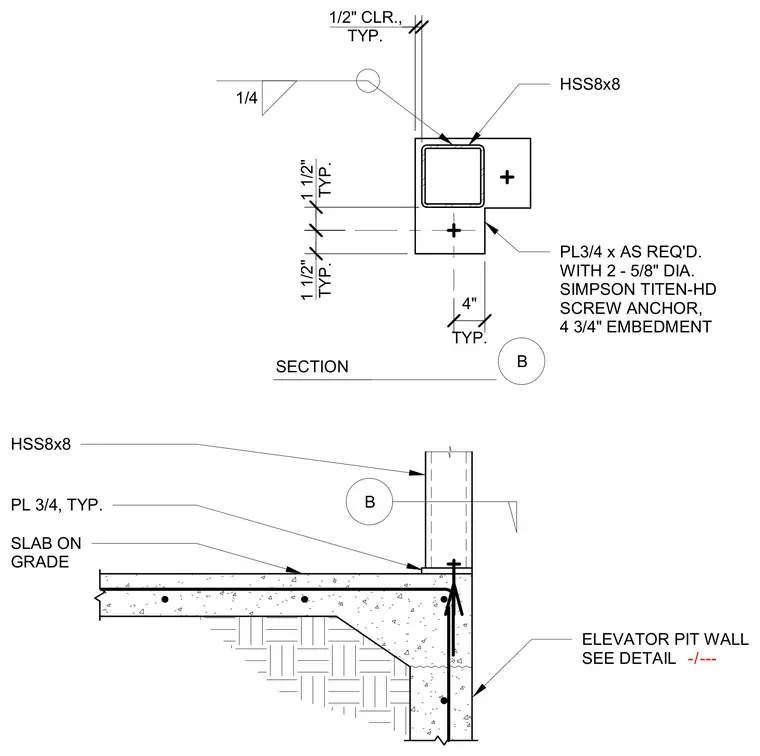

PL3/4 x AS REQ'D. WITH 2 - 5/8" DIA. SIMPSON TITEN-HD SCREW ANCHOR, 4 3/4" EMBEDMENT HSS8x8 HSS8x8 SLAB ON GRADE PL 3/4, TYP. ELEVATOR PIT WALL SEE DETAIL B B SECTION 1 1/2" TYP. 1 1/2" TYP. TYP. 4" 1/4 1/2" CLR., TYP. / - ---
