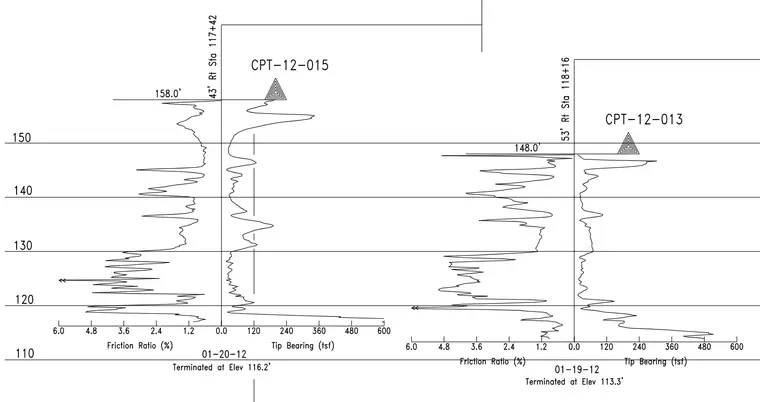

Geotechnical soil profile showing cone penetration test data for borings CPT-12-015 and CPT-12-013. The log details tip bearing in tsf and friction ratio in percentage plotted against elevations. Boring CPT-12-015 is located at 43 feet right of station 117+42, starting from elevation 158.0 feet and terminating at elevation 116.2 feet. Boring CPT-12-013 is located at 53 feet right of station 118+16, starting from elevation 148.0 feet and terminating at elevation 113.3 feet.
110 << 158.0’ CPT-12-015 43 ’ R t S t a 117 + 42 0.0 1.2 2.4 3.6 4.8 6.0 Friction Ratio (%) Tip Bearing (tsf) Terminated at Elev 116.2’ 120 240 360 480 600 120 130 140 150 << 148.0’ CPT-12-013 53 ’ R t S t a 118 + 16 0.0 1.2 2.4 3.6 4.8 6.0 Friction Ratio (%) Tip Bearing (tsf) Terminated at Elev 113.3’ 120 240 360 480 600 01-20-12 01-19-12
