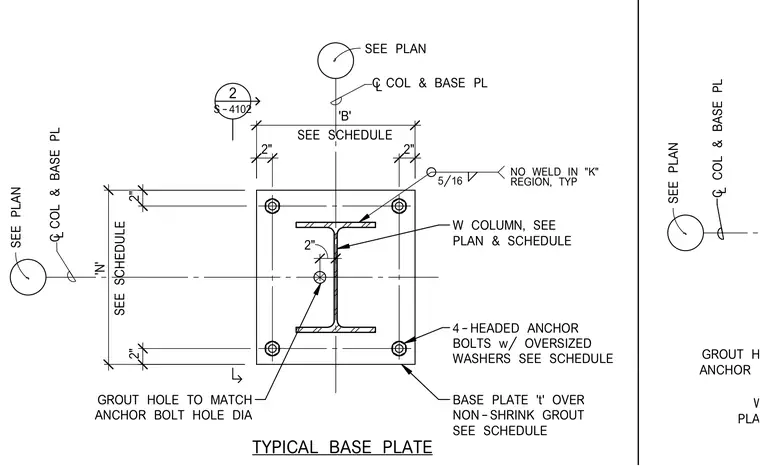

A wide-flange steel column bears on a steel base plate of specified thickness over non-shrink grout. Four headed anchor bolts with oversized washers secure the base plate at the corners. A two-inch diameter grout hole is provided to match the anchor bolt hole diameter. Fillet welds connect the column flanges to the base plate, left unwelded in the web "K" region.
SEE PLAN C L SEE PLAN C L 4-HEADED ANCHOR BOLTS w/ OVERSIZED WASHERS SEE SCHEDULE W COLUMN, SEE PLAN & SCHEDULE BASE PLATE 't' OVER NON-SHRINK GROUT SEE SCHEDULE NO WELD IN "K" 5/16 REGION, TYP TYPICAL BASE PLATE COL & BASE PL COL & BASE PL 2" GROUT HOLE TO MATCH ANCHOR BOLT HOLE DIA SEE SCHEDULE 'B' SEE SCHEDULE 'N' 2" 2" 2" 2" 2 S-4102 SEE PLAN C L W COLUMN, SEE PLAN & SCHEDULE COL & BASE PL GROUT HOLE OT MATCH ANCHOR BOLT HOLE DIA
