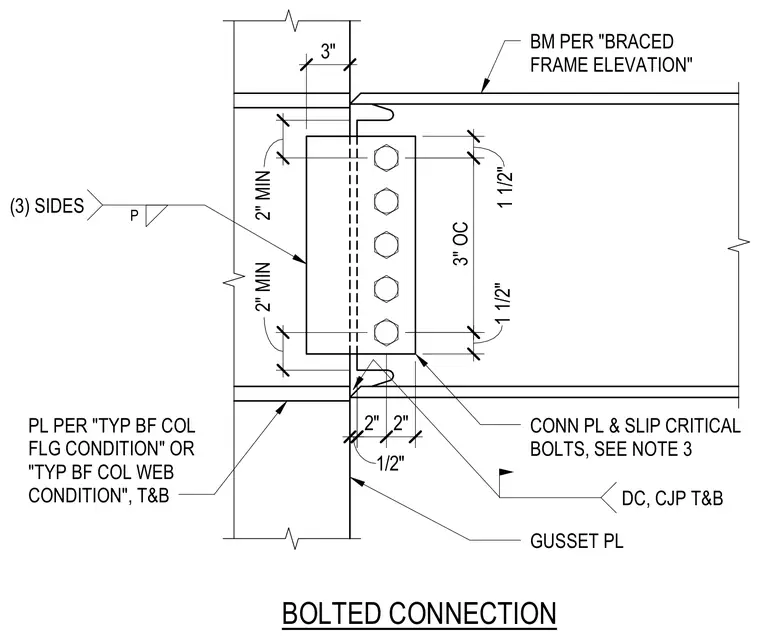

A structural steel beam frames into a column using top and bottom plates sized per typical braced frame flange or web conditions. A vertical connection plate with slip-critical bolts fastens the beam web, secured with a three-sided weld. A gusset plate features a complete joint penetration weld at the top and bottom with designated minimum edge distances and a three-inch on-center bolt spacing. Additional clearances of two inches minimum and half-inch offsets are provided for structural alignment.
PL PER "TYP BF COL FLG CONDITION" OR "TYP BF COL WEB CONDITION", T&B GUSSET PL CONN PL & SLIP CRITICAL BOLTS, SEE NOTE 3 BM PER "BRACED FRAME ELEVATION" 1 1/2" 12" 1 1/2" 3" OC 2" 2" 1/2" DC, CJP T&B 2 5/8" 2 5/8" 3" 2" MIN 2" MIN (3) SIDES P BOLTED CONNECTION
