Structural · S-V5E8G

Buckling-Restrained Braced Frame Column Base Plate Connection

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Bolted Connection Rebar Splice / Development Embed Plate

About this detail

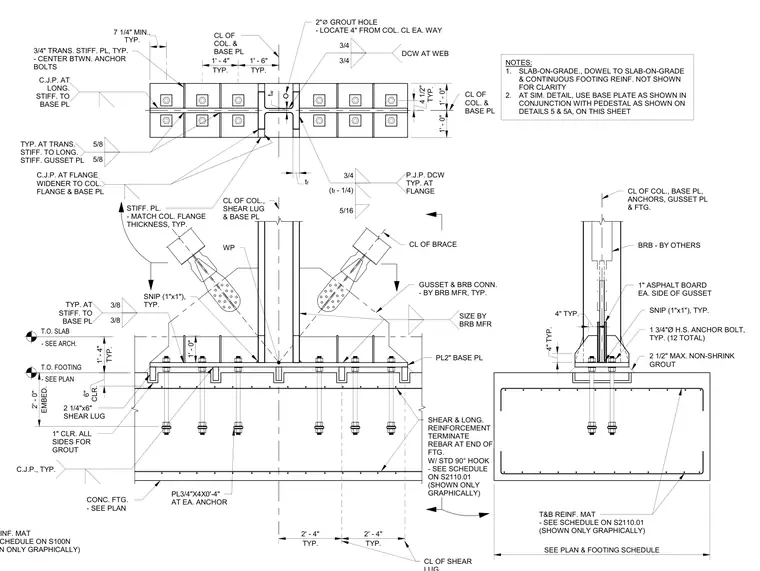

A structural steel column frames into a thick base plate anchored to a reinforced concrete footing with twelve one-and-three-quarter-inch diameter high-strength anchor bolts. Gusset plates connect buckling-restrained braces to the column and base plate assembly, utilizing welded connections and shear tabs sized per the manufacturer. Stiffener plates matching the column flange thickness are welded to the base plate with complete-joint-penetration welds. A two-and-a-half-inch maximum non-shrink grout layer sits beneath the base plate, alongside a two-and-a-quarter by six-inch shear lug and one-inch asphalt board on each side of the gusset.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
