A furring stud with a minimum flange width of 1 5/8 inches connects to an exterior or interior non-bearing steel stud. Steel stud bridging is tied into the assembly per the structural drawings at twenty-four inches on center. Number 10 sheet metal screws fasten the components at twenty-four inches on center. Architectural finishes apply to both sides of the wall assembly.

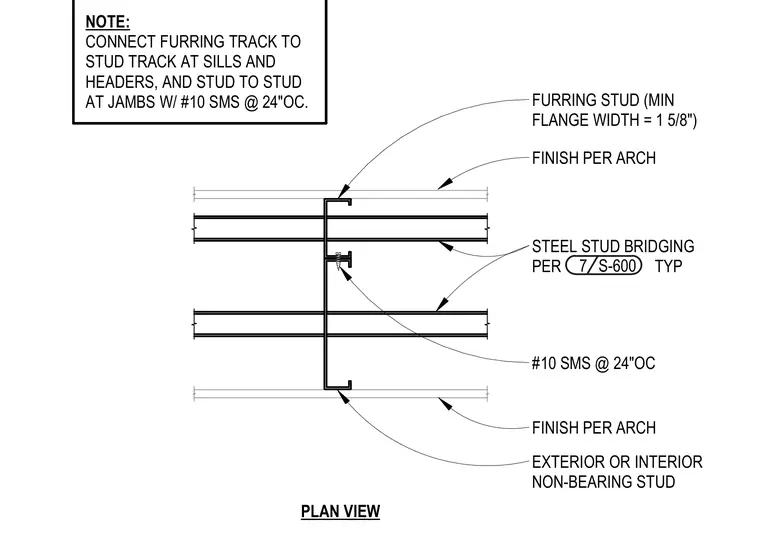

PLAN VIEW NOTE: CONNECT FURRING TRACK TO STUD TRACK AT SILLS AND HEADERS, AND STUD TO STUD AT JAMBS W/ #10 SMS @ 24"OC. FINISH PER ARCH FURRING STUD (MIN FLANGE WIDTH = 1 5/8") FINISH PER ARCH EXTERIOR OR INTERIOR NON-BEARING STUD #10 SMS @ 24"OC STEEL STUD BRIDGING PER TYP 7 S-600
