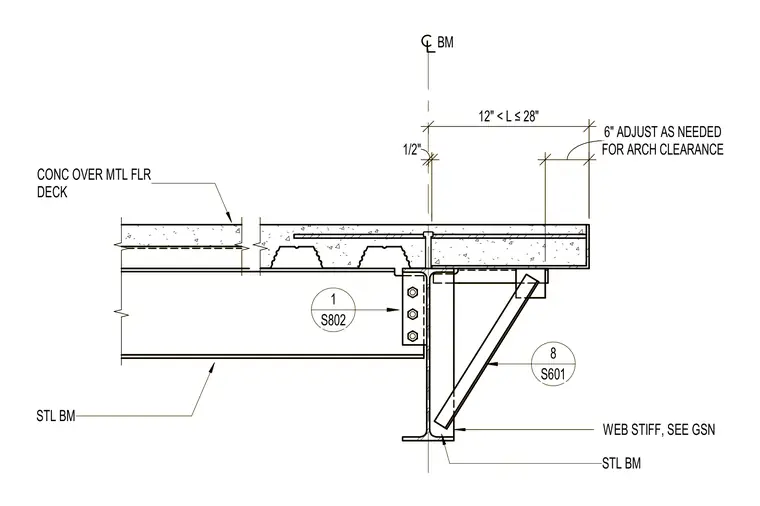

A concrete slab over metal floor deck bears on a structural steel beam assembly. Web stiffeners are provided at the beam support as detailed on referenced sheet S601. A six-inch adjustment is provided as needed for architectural clearance. Framing details reference sheet S802 for connection specifics.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN 1 S802 8 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN 1 S802 8 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED
