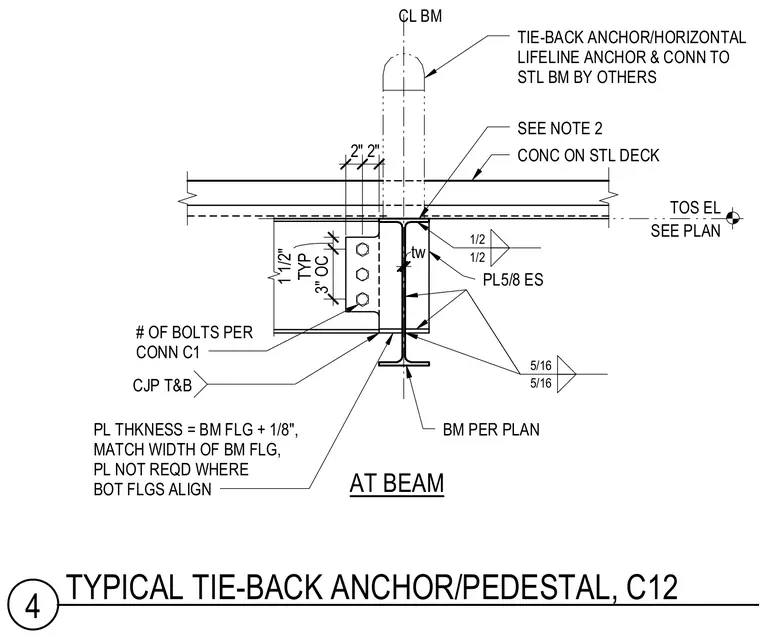

A tie-back anchor and horizontal lifeline anchor connect to a supporting steel beam beneath a concrete slab on a metal deck. The connection utilizes a five-eighths-inch plate on each side, welded to the beam web with half-inch and five-sixteenths-inch fillet welds and complete joint penetration welds at the top and bottom flanges. The plate thickness equals the beam flange thickness plus one-eighth of an inch and matches the beam flange width, though plates are not required where bottom flanges align. Bolts connect the assembly per plan with three-inch on-center spacing and one-and-a-half-inch edge distances.
CONC ON STL DECK CL BM SEE PLAN TOS EL AT BEAM TIE-BACK ANCHOR/HORIZONTAL LIFELINE ANCHOR & CONN TO STL BM BY OTHERS SEE NOTE 2 TYP 1 1/2" 3" OC 1/2 1/2 5/16 5/16 tw PL5/8 ES CJP T&B # OF BOLTS PER CONN C1 BM PER PLAN PL THKNESS = BM FLG + 1/8", MATCH WIDTH OF BM FLG, PL NOT REQD WHERE BOT FLGS ALIGN 2" 2" 4 TYPICAL TIE-BACK ANCHOR/PEDESTAL, C12
